ADP7112ACBZ-2.5-R7 - Analog Devices

Description: LDO Voltage Regulators 20V 200mA LDO 2.5Vo

Download ADP7112ACBZ-2.5-R7 Model

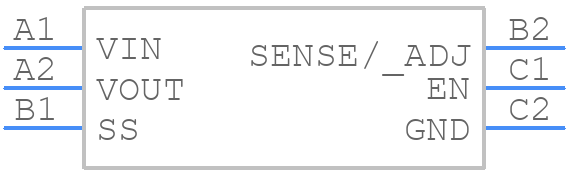

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADP7112ACBZ-2.5-R7 - Analog Devices PCB footprint - BGA - BGA - CB-6-15
click to zoom
3D Models
ADP7112ACBZ-2.5-R7 - Analog Devices  - 3D model - BGA - CB-6-15
click to zoom

ADP7112ACBZ-2.5-R7 Details

  • Manufacturer Part Number:

    ADP7112ACBZ-2.5-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    CB-6-15

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.42 V

  • Dropout Voltage1-Nom:

    0.2 V

  • Input Voltage Absolute-Max:

    24 V

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    R-PBGA-B6

  • JESD-609 Code:

    e1

  • Length:

    1.16 mm

  • Line Regulation-Max:

    0.0083%

  • Load Regulation-Max:

    0.02%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    2.55 V

  • Output Voltage1-Min:

    2.46 V

  • Output Voltage1-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA6,2X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.56 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1.8%

  • Width:

    0.95 mm

ADP7112ACBZ-2.5-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP7112 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR and is properly decoupled from the input capacitor. Additionally, avoid using long input and output traces, and keep the device away from noise sources.
  • The ADP7112 can handle input voltages up to 12V, but it's recommended to keep the input voltage below 10V to ensure reliable operation and to prevent damage to the device.
  • The ADP7112 is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the output current and voltage at high temperatures to ensure reliable operation.
  • The output voltage ripple of the ADP7112 can be calculated using the formula: ΔVout = (Iout * ESR) / (f * Cout), where Iout is the output current, ESR is the equivalent series resistance of the output capacitor, f is the switching frequency, and Cout is the output capacitance.
