ADP7112ACBZ-5.0-R7 - Analog Devices

Description: LDO Voltage Regulators Linear Regulator LDO 20V 200mA

Download ADP7112ACBZ-5.0-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

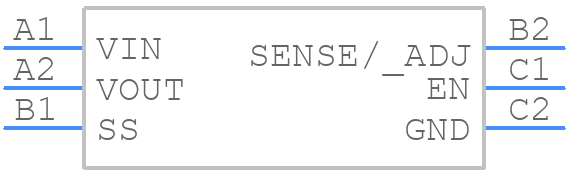

Symbol
ADP7112ACBZ-5.0-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP7112ACBZ-5.0-R7 - Analog Devices PCB footprint - BGA - BGA - CB-6-15
click to zoom
3D Models
ADP7112ACBZ-5.0-R7 - Analog Devices - 3D model - BGA - CB-6-15
click to zoom

ADP7112ACBZ-5.0-R7 Details

  • Manufacturer Part Number:

    ADP7112ACBZ-5.0-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    CB-6-15

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.42 V

  • Dropout Voltage1-Nom:

    0.2 V

  • Input Voltage Absolute-Max:

    24 V

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    6 V

  • JESD-30 Code:

    R-PBGA-B6

  • JESD-609 Code:

    e1

  • Length:

    1.16 mm

  • Line Regulation-Max:

    0.014%

  • Load Regulation-Max:

    0.04%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    5.09 V

  • Output Voltage1-Min:

    4.91 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA6,2X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.56 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1.8%

  • Width:

    0.95 mm

ADP7112ACBZ-5.0-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP7112ACBZ-5.0-R7 should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour connectivity to dissipate heat. Avoid routing high-current traces under the device, and use thermal vias to connect the top and bottom layers.
  • To ensure stability, follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, consider the output capacitor's ESR and ESL, and ensure the feedback network is properly compensated. You can also use Analog Devices' stability analysis tools to simulate and optimize your design.
  • Exceeding the maximum TJ rating can lead to reduced lifespan, decreased performance, and even permanent damage to the device. Ensure proper thermal management, and consider derating the device's power dissipation to maintain a safe operating temperature.
  • While the ADP7112ACBZ-5.0-R7 is a high-performance device, it may not meet the specific requirements for high-reliability or automotive applications. Consult with Analog Devices' support team or consider using a device specifically designed for these applications, such as the AEC-Q100 qualified ADP7112ACPZ-5.0-R7.
  • Start by verifying the power supply, input, and output voltages. Check for proper PCB layout, component values, and soldering quality. Use an oscilloscope to inspect the output waveform and identify any signs of oscillation or instability. Consult the datasheet and application notes for troubleshooting guides and simulation tools.
