ADP7118ACPZN-R7 - Analog Devices

Description: 20 V, 200 mA, Low Noise, CMOS LDO Linear Regulator

Download ADP7118ACPZN-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

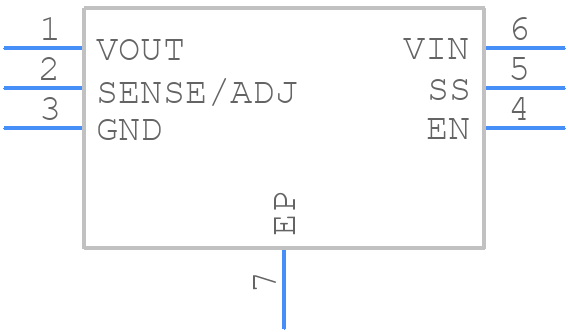

ADP7118ACPZN-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP7118ACPZN-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - . 6-Lead Lead Frame Chip Scale Package [LFCSP] 2.00 mm × 2.00 mm Body and 0.55 mm Package Height (CP-6-3
click to zoom
3D Models
ADP7118ACPZN-R7 - Analog Devices - 3D model - Small Outline No-lead - . 6-Lead Lead Frame Chip Scale Package [LFCSP] 2.00 mm × 2.00 mm Body and 0.55 mm Package Height (CP-6-3
click to zoom

ADP7118ACPZN-R7 Details

  • Manufacturer Part Number:

    ADP7118ACPZN-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    6

  • Manufacturer Package Code:

    CP-6-3

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

ADP7118ACPZN-R7 Frequently Asked Questions (FAQs)

  • The maximum output current of the ADP7118ACPZN-R7 is 1.5A.
  • To ensure stability, it is recommended to use a minimum output capacitance of 10uF and a minimum ESR of 0.1 ohms, and to follow the layout guidelines provided in the datasheet.
  • The input voltage range of the ADP7118ACPZN-R7 is 2.7V to 5.5V.
  • Yes, the ADP7118ACPZN-R7 is rated for operation from -40°C to 125°C, but the output current may need to be derated at high temperatures.
  • The output voltage of the ADP7118ACPZN-R7 can be adjusted by using a resistive divider network between the output and the FB pin, as described in the datasheet.
