ADP7118ACPZN3.3-R7 - Analog Devices

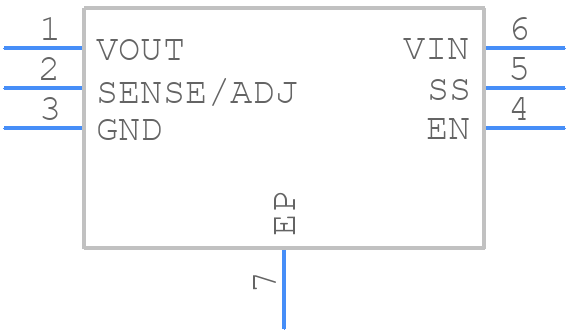

ADP7118ACPZN3.3-R7 Details

• Manufacturer Part Number:

  ADP7118ACPZN3.3-R7

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Pin Count:

  6

• Manufacturer Package Code:

  CP-6-3

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.42 V

• Dropout Voltage1-Nom:

  0.2 V

• Input Voltage Absolute-Max:

  24 V

• Input Voltage-Max:

  20 V

• Input Voltage-Min:

  2.7 V

• JESD-30 Code:

  S-PDSO-N6

• Length:

  2 mm

• Line Regulation-Max:

  0.0077715%

• Line Regulation-Max (%/V):

  0.007771

• Load Regulation-Max:

  0.026%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  6

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  0.2 A

• Output Voltage1-Max:

  3.3495 V

• Output Voltage1-Min:

  3.2604 V

• Output Voltage1-Nom:

  3.3 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HUSON

• Package Equivalence Code:

  SOLCC6,.08,25

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, ULTRA THIN PROFILE

• Packing Method:

  TR, 7 INCH

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  0.6 mm

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Voltage Tolerance-Max:

  1.8%

• Width:

  2 mm
