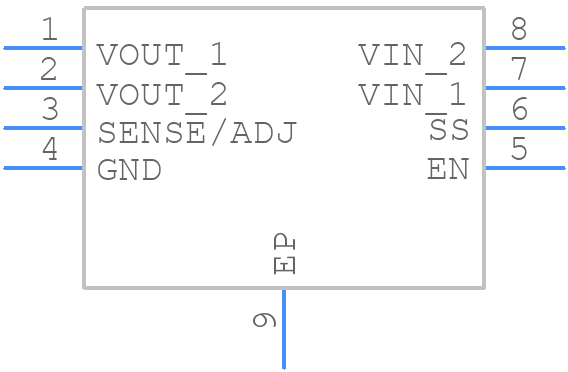

ADP7118ARDZ-1.8 - Analog Devices

ADP7118ARDZ-1.8 Frequently Asked Questions (FAQs)

• What is the recommended input capacitor value for the ADP7118?
  The recommended input capacitor value for the ADP7118 is 1uF to 10uF, depending on the input voltage and output current requirements. A larger capacitor can help to reduce input voltage ripple and improve overall performance.
• How do I ensure stability and prevent oscillations in the ADP7118?
  To ensure stability and prevent oscillations in the ADP7118, it's essential to follow the recommended PCB layout guidelines, use a sufficient output capacitor, and ensure that the input voltage is within the recommended range. Additionally, adding a small capacitor (e.g., 10nF) between the VIN and GND pins can help to improve stability.
• What is the maximum output current capability of the ADP7118?
  The maximum output current capability of the ADP7118 is 1.2A. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations. It's essential to consult the datasheet and perform thermal calculations to ensure that the device can deliver the required output current.
• Can I use the ADP7118 in a high-temperature environment?
  The ADP7118 is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. It's essential to consult the datasheet and perform thermal calculations to ensure that the device can operate reliably in the target environment.
• How do I select the correct output voltage for my application?
  The ADP7118 is available in fixed output voltage options (e.g., 1.8V, 3.3V, 5V). To select the correct output voltage, consider the voltage requirements of your load, the input voltage range, and the desired output voltage tolerance. Consult the datasheet and application notes for guidance on selecting the correct output voltage option.
