ADP7118ARDZ-2.5 - Analog Devices

Description: 20 V, 200 mA, Low Noise, CMOS LDO Linear Regulator

Download ADP7118ARDZ-2.5 Model

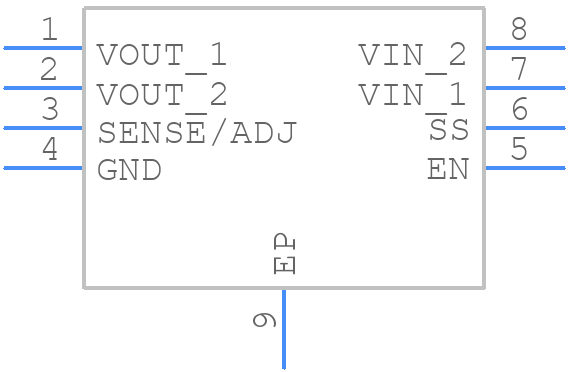

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADP7118ARDZ-2.5 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RD-8-1)
click to zoom
3D Models
ADP7118ARDZ-2.5 - Analog Devices  - 3D model - Small Outline Packages - (RD-8-1)
click to zoom

ADP7118ARDZ-2.5 Details

  • Manufacturer Part Number:

    ADP7118ARDZ-2.5

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    RD-8-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

ADP7118ARDZ-2.5 Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the ADP7118 is 15V, but it's recommended to keep it below 12V for optimal performance and to prevent damage to the device.
  • To ensure stability and prevent oscillations, it's essential to follow the recommended layout and component selection guidelines, including the use of a 10uF ceramic capacitor at the output, and a 1uF ceramic capacitor at the input. Additionally, the input and output capacitors should be placed close to the device.
  • The minimum ESR required for the output capacitor is 0.1 ohms. Using a capacitor with a lower ESR can lead to instability and oscillations.
  • Yes, the ADP7118 can be used as a voltage regulator for a microcontroller. However, it's essential to ensure that the output voltage and current meet the microcontroller's requirements, and that the ADP7118 is properly configured and bypassed to prevent noise and voltage drops.
  • The output voltage of the ADP7118 can be calculated using the formula: VOUT = (R1/R2) * (VREF - VFB), where R1 and R2 are the resistors used to set the output voltage, VREF is the internal reference voltage (1.25V), and VFB is the feedback voltage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADP7118ARDZ-2.5 Overview

Use the download button to access the ADP7118ARDZ-2.5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADP71, or try a keyword search, such as Linear Regulator ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
