ADP7118ARDZ-3.3 - Analog Devices

Description: 20 V, 200 mA, Low Noise, CMOS LDO Linear Regulator

Download ADP7118ARDZ-3.3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

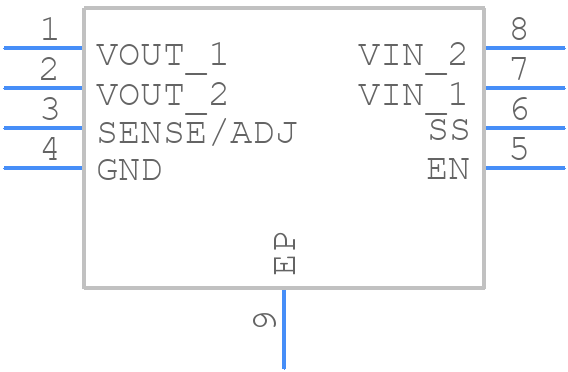

ADP7118ARDZ-3.3 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP7118ARDZ-3.3 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RD-8-1)
click to zoom
3D Models
ADP7118ARDZ-3.3 - Analog Devices - 3D model - Small Outline Packages - (RD-8-1)
click to zoom

ADP7118ARDZ-3.3 Details

  • Manufacturer Part Number:

    ADP7118ARDZ-3.3

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    RD-8-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

ADP7118ARDZ-3.3 Frequently Asked Questions (FAQs)

  • The maximum output current of ADP7118ARDZ-3.3 is 800mA.
  • To ensure stability, use a minimum output capacitance of 10uF, and ensure that the output capacitor has an ESR of less than 1 ohm.
  • The input voltage range of ADP7118ARDZ-3.3 is 2.7V to 5.5V.
  • Yes, ADP7118ARDZ-3.3 can operate in a temperature range of -40°C to 125°C, but the output current may be derated at high temperatures.
  • To reduce noise, use a low-ESR output capacitor, and consider adding a noise-reducing capacitor (e.g., 10nF) between the output and ground.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADP7118ARDZ-3.3 Overview

Use the download button to access the ADP7118ARDZ-3.3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADP71, or try a keyword search, such as Linear Regulator ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
