ADP7118ARDZ-5.0-R7 - Analog Devices

Description: ANALOG DEVICES - ADP7118ARDZ-5.0-R7 - LDO Voltage Regulator, Fixed, 2.7 V to 20 V in, 200 mV drop, 5 V/200 mA out, NSOIC-8

Download ADP7118ARDZ-5.0-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

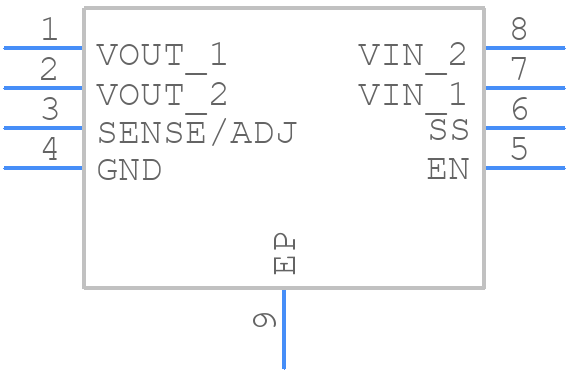

ADP7118ARDZ-5.0-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP7118ARDZ-5.0-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RD-8-1
click to zoom
3D Models
ADP7118ARDZ-5.0-R7 - Analog Devices - 3D model - Small Outline Packages - RD-8-1
click to zoom

ADP7118ARDZ-5.0-R7 Details

  • Manufacturer Part Number:

    ADP7118ARDZ-5.0-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    RD-8-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

ADP7118ARDZ-5.0-R7 Frequently Asked Questions (FAQs)

  • For optimal thermal performance, it is recommended to have a solid ground plane on the PCB, and to place thermal vias under the device to dissipate heat efficiently. A minimum of 4-6 thermal vias with a diameter of 0.3-0.5 mm is recommended.
  • To ensure stability and prevent oscillations, it is essential to follow the recommended component values and PCB layout guidelines. Additionally, a minimum output capacitance of 10uF with an ESR of 10mΩ or less is recommended. It is also important to decouple the input voltage with a 10uF capacitor.
  • The maximum input voltage that can be applied to the ADP7118ARDZ-5.0-R7 is 15V. Exceeding this voltage may cause damage to the device.
  • The output voltage of the ADP7118ARDZ-5.0-R7 can be adjusted by using the feedback resistors (R1 and R2) and the output voltage setting pin (VSET). The output voltage can be calculated using the formula: VOUT = 0.8V x (1 + R2/R1).
  • The typical dropout voltage of the ADP7118ARDZ-5.0-R7 is 1.2V at an output current of 500mA.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADP7118ARDZ-5.0-R7 Overview

Use the download button to access the ADP7118ARDZ-5.0-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADP71, or try a keyword search, such as Linear Regulator ICs
