ADP7142ACPZN-R7 - Analog Devices

Description: 40 V, 200 mA, Low Noise, CMOS LDO Linear Regulator

Download ADP7142ACPZN-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

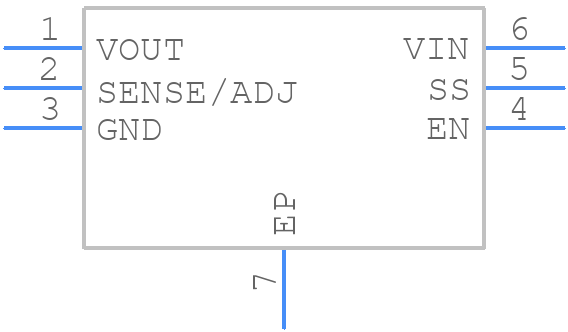

ADP7142ACPZN-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP7142ACPZN-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-6-3_1
click to zoom
3D Models
ADP7142ACPZN-R7 - Analog Devices - 3D model - Small Outline No-lead - CP-6-3_1
click to zoom

ADP7142ACPZN-R7 Details

  • Manufacturer Part Number:

    ADP7142ACPZN-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    6

  • Manufacturer Package Code:

    CP-6-3

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Dropout Voltage1-Max:

    0.42 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    39.58 V

  • Output Voltage1-Min:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.65 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

ADP7142ACPZN-R7 Frequently Asked Questions (FAQs)

  • A good thermal design should include a solid ground plane, thermal vias, and a heat sink. The datasheet provides some guidelines, but a more detailed application note (AN-1149) from Analog Devices provides additional guidance.
  • To ensure stability, follow the recommended component values and PCB layout guidelines. Additionally, consider adding a small capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
  • The absolute maximum rating for the input voltage is 6V. Exceeding this voltage can cause permanent damage to the device. It's essential to ensure that the input voltage remains within the recommended operating range.
  • While the ADP7142 can deliver up to 2A of output current, it's not designed for high-current applications. For high-current requirements, consider using a dedicated high-current regulator or a different device specifically designed for high-current applications.
  • The ADP7142 has a built-in overcurrent protection feature. To implement it, connect a sense resistor (Rs) between the output and GND, and set the overcurrent threshold (Ilim) using an external resistor (Rlim) connected between the ILIM pin and GND.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADP7142ACPZN-R7 Overview

Use the download button to access the ADP7142ACPZN-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADP71, or try a keyword search, such as Linear Regulator ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
