ADP7142ACPZN2.5-R7 - Analog Devices

Description: 40 V, 200 mA, Low Noise, CMOS LDO Linear Regulator

Download ADP7142ACPZN2.5-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

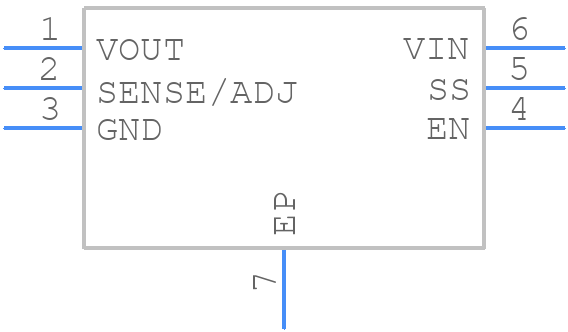

ADP7142ACPZN2.5-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP7142ACPZN2.5-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 6-Lead Lead Frame Chip Scale Package [LFCSP] 2.00 mm × 2.00 mm Body and 0.55 mm Package Height (CP-6-3)
click to zoom
3D Models
ADP7142ACPZN2.5-R7 - Analog Devices - 3D model - Small Outline No-lead - 6-Lead Lead Frame Chip Scale Package [LFCSP] 2.00 mm × 2.00 mm Body and 0.55 mm Package Height (CP-6-3)
click to zoom

ADP7142ACPZN2.5-R7 Details

  • Manufacturer Part Number:

    ADP7142ACPZN2.5-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    6

  • Manufacturer Package Code:

    CP-6-3

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Dropout Voltage1-Max:

    0.42 V

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    2.545 V

  • Output Voltage1-Min:

    2.455 V

  • Output Voltage1-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1.8%

  • Width:

    2 mm
