ADP7142ACPZN5.0-R7 - Analog Devices

Description: 40 V, 200 mA, Low Noise, CMOS LDO Linear Regulator

Download ADP7142ACPZN5.0-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

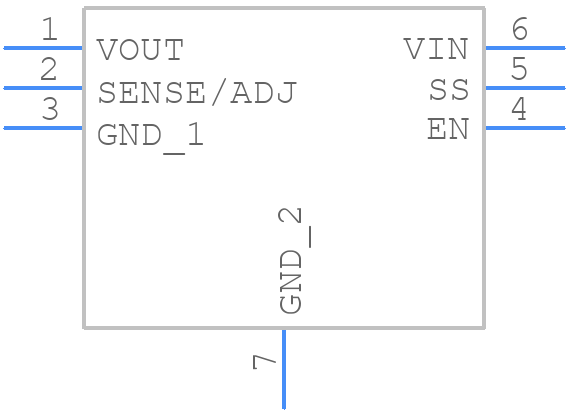

ADP7142ACPZN5.0-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP7142ACPZN5.0-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 6-Lead Lead Frame Chip Scale Package [LFCSP] 2.00 mm × 2.00 mm Body and 0.55 mm Package Height (CP-6-3)-
click to zoom
3D Models
ADP7142ACPZN5.0-R7 - Analog Devices - 3D model - Small Outline No-lead - 6-Lead Lead Frame Chip Scale Package [LFCSP] 2.00 mm × 2.00 mm Body and 0.55 mm Package Height (CP-6-3)-
click to zoom

ADP7142ACPZN5.0-R7 Details

  • Manufacturer Part Number:

    ADP7142ACPZN5.0-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    6

  • Manufacturer Package Code:

    CP-6-3

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Dropout Voltage1-Max:

    0.42 V

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    6 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    5.09 V

  • Output Voltage1-Min:

    4.91 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1.8%

  • Width:

    2 mm

ADP7142ACPZN5.0-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP7142ACPZN5.0-R7 should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour connectivity to dissipate heat. Avoid routing high-current traces under the device, and use thermal vias to connect the top and bottom layers.
  • To ensure stability, follow the recommended output capacitor selection and placement guidelines in the datasheet. Additionally, ensure the input capacitor is properly sized and placed close to the VIN pin. Avoid using ceramic capacitors with high ESR values, and consider adding a 10nF-100nF capacitor in parallel with the output capacitor to improve stability.
  • The ADP7142ACPZN5.0-R7 can tolerate input voltage ripple up to 1V peak-to-peak. However, it's recommended to keep the input voltage ripple below 0.5V peak-to-peak to ensure optimal performance and minimize output voltage noise.
  • The ADP7142ACPZN5.0-R7 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. Ensure proper thermal management, and consider derating the output current and voltage according to the datasheet's thermal derating curves.
  • Use the following formula to calculate power dissipation: Pd = (VIN - VOUT) x IOUT. Then, use the thermal resistance (θJA) and power dissipation to estimate the junction temperature: Tj = TA + (Pd x θJA), where TA is the ambient temperature.
