ADP7142ARDZ-3.3 - Analog Devices

Description: 40 V, 200 mA, Low Noise, CMOS LDO Linear Regulator

Download ADP7142ARDZ-3.3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

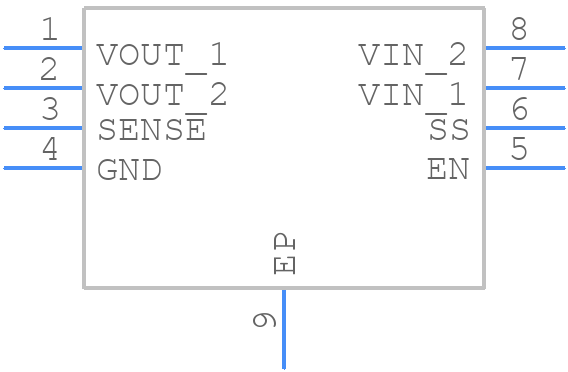

ADP7142ARDZ-3.3 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP7142ARDZ-3.3 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RD-8-1
click to zoom
3D Models
ADP7142ARDZ-3.3 - Analog Devices - 3D model - Small Outline Packages - RD-8-1
click to zoom

ADP7142ARDZ-3.3 Details

  • Manufacturer Part Number:

    ADP7142ARDZ-3.3

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    RD-8-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Dropout Voltage1-Max:

    0.42 V

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    4.3 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    3.3594 V

  • Output Voltage1-Min:

    3.2406 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1.8%

  • Width:

    3.9 mm

ADP7142ARDZ-3.3 Frequently Asked Questions (FAQs)

  • The maximum output current of ADP7142ARDZ-3.3 is 2A. However, it's recommended to limit the output current to 1.5A for optimal performance and reliability.
  • The output voltage of ADP7142ARDZ-3.3 can be adjusted by using an external resistor divider network between the VOUT pin and the GND pin. The output voltage can be calculated using the formula: VOUT = 3.3V x (R1 / (R1 + R2)), where R1 and R2 are the resistors in the divider network.
  • The input voltage range of ADP7142ARDZ-3.3 is 2.7V to 5.5V. However, it's recommended to operate the device within the range of 3.0V to 5.0V for optimal performance and reliability.
  • To ensure stability and prevent oscillations in ADP7142ARDZ-3.3, it's recommended to use a minimum output capacitance of 10uF, and to place the output capacitor close to the VOUT pin. Additionally, the input capacitor should be placed close to the VIN pin, and the device should be operated within the recommended input voltage range.
  • The thermal shutdown temperature of ADP7142ARDZ-3.3 is 150°C. The device will shut down when the junction temperature exceeds this value, and will automatically restart when the temperature drops below 130°C.
