ADP7156ARDZ-1.2-R7 - Analog Devices

Description: 1.2 A, Ultralow Noise, High PSRR, Fixed Output, RF Linear Regulator

Download ADP7156ARDZ-1.2-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

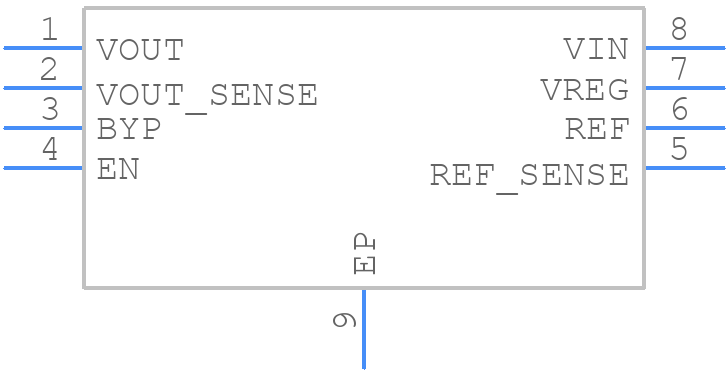

ADP7156ARDZ-1.2-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP7156ARDZ-1.2-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RD-8-1)-1
click to zoom
3D Models
ADP7156ARDZ-1.2-R7 - Analog Devices - 3D model - Small Outline Packages - (RD-8-1)-1
click to zoom

ADP7156ARDZ-1.2-R7 Details

  • Manufacturer Part Number:

    ADP7156ARDZ-1.2-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    RD-8-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-03-17

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Nom:

    1.1 V

  • Input Voltage Absolute-Max:

    7 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.3 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Line Regulation-Max:

    0.00384%

  • Load Regulation-Max:

    0.04284%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.2 A

  • Output Voltage1-Max:

    1.218 V

  • Output Voltage1-Min:

    1.182 V

  • Output Voltage1-Nom:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1.5%

  • Width:

    3.9 mm

ADP7156ARDZ-1.2-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP7156 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device should be operated within its recommended operating conditions, and the output should not be overloaded.
  • The maximum output current of the ADP7156 is 1.2A. However, the device can deliver higher currents for short durations. It's recommended to check the device's thermal performance and power dissipation to ensure reliable operation.
  • Yes, the ADP7156 can be used as a voltage regulator for a microcontroller. However, it's essential to ensure that the device can provide the required output current and voltage for the microcontroller, and that the output voltage is within the microcontroller's recommended operating range.
  • The power dissipation of the ADP7156 can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. Additionally, the device's quiescent current and switching losses should also be considered.
