ADP7156ARDZ-3.3-R7 - Analog Devices

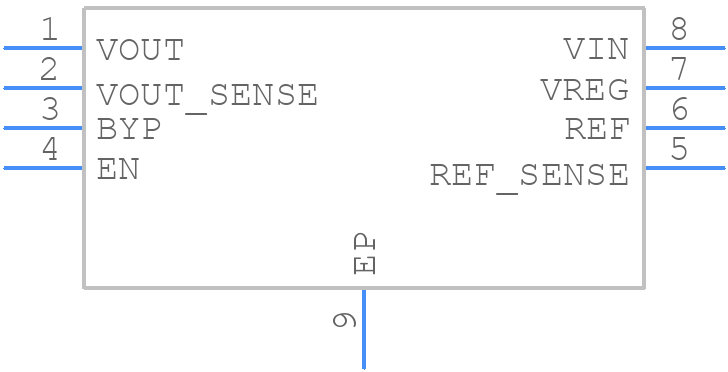

ADP7156ARDZ-3.3-R7 Details

• Manufacturer Part Number:

  ADP7156ARDZ-3.3-R7

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Pin Count:

  8

• Manufacturer Package Code:

  RD-8-1

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Date Of Intro:

  2016-03-17

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.17 V

• Input Voltage Absolute-Max:

  7 V

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  3.8 V

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e3

• Length:

  4.9 mm

• Line Regulation-Max:

  0.00561%

• Load Regulation-Max:

  0.11781%

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  1.2 A

• Output Voltage1-Max:

  3.3495 V

• Output Voltage1-Min:

  3.2505 V

• Output Voltage1-Nom:

  3.3 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG

• Peak Reflow Temperature (Cel):

  260

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  1.75 mm

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Voltage Tolerance-Max:

  1.5%

• Width:

  3.9 mm
