ADP7156WACPZ-3.3-R7 - Analog Devices

Description: 1.2 A, Ultralow Noise, High PSRR, Fixed Output, RF Linear Regulator

Download ADP7156WACPZ-3.3-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

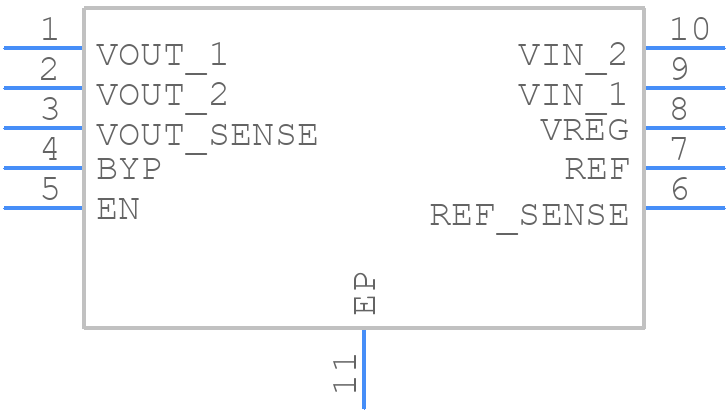

ADP7156WACPZ-3.3-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP7156WACPZ-3.3-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-10-9
click to zoom
3D Models
ADP7156WACPZ-3.3-R7 - Analog Devices - 3D model - Small Outline No-lead - CP-10-9
click to zoom

ADP7156WACPZ-3.3-R7 Details

  • Manufacturer Part Number:

    ADP7156WACPZ-3.3-R7

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LFCSP:LEADFRM CHIP SCALE

  • Pin Count:

    10

  • Manufacturer Package Code:

    LFCSP:LEADFRM CHIP SCALE

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2016-03-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.17 V

  • Input Voltage Absolute-Max:

    7 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3.8 V

  • JESD-30 Code:

    S-XDSO-N10

  • Length:

    3 mm

  • Line Regulation-Max:

    0.00561%

  • Load Regulation-Max:

    0.11781%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Output Current1-Max:

    1.2 A

  • Output Voltage1-Max:

    3.3495 V

  • Output Voltage1-Min:

    3.2505 V

  • Output Voltage1-Nom:

    33 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    1.5%

  • Width:

    3 mm

ADP7156WACPZ-3.3-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP7156WACPZ-3.3-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the device away from high-current switching components.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input voltage is within the recommended range, and that the output capacitor is of sufficient value and type. It's also important to minimize the noise and ripple on the input voltage and to use a low-ESR output capacitor.
  • The maximum ambient temperature range for the ADP7156WACPZ-3.3-R7 is -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
  • Yes, the ADP7156WACPZ-3.3-R7 is suitable for high-reliability and automotive applications. It's built with high-reliability materials and manufacturing processes, and it's qualified to the AEC-Q100 standard for automotive applications. However, it's recommended to consult with Analog Devices' application engineers to ensure that the device meets the specific requirements of your application.
  • To troubleshoot issues with the ADP7156WACPZ-3.3-R7, start by checking the input voltage and current, and ensuring that they are within the recommended range. Next, check the output voltage and current, and ensure that they are within the expected range. If the issue persists, check the PCB layout and component values to ensure that they are correct. Finally, consult the datasheet and application notes, and contact Analog Devices' technical support if necessary.
