ADP7157ACPZ-02-R7 - Analog Devices

Description: 1.2 A, Ultralow Noise, High PSRR, Adjustable Output, RF Linear Regulator

Download ADP7157ACPZ-02-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

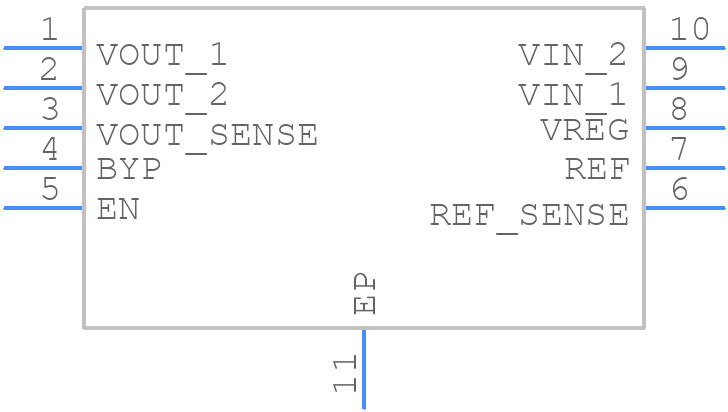

ADP7157ACPZ-02-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP7157ACPZ-02-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - (CP-10-9)
click to zoom
3D Models
ADP7157ACPZ-02-R7 - Analog Devices - 3D model - Small Outline No-lead - (CP-10-9)
click to zoom

ADP7157ACPZ-02-R7 Details

  • Manufacturer Part Number:

    ADP7157ACPZ-02-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-03-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.1

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.2 A

  • Output Voltage1-Max:

    2.3 V

  • Output Voltage1-Min:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.85 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADP7157ACPZ-02-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP7157 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR (Equivalent Series Resistance) and is properly sized for the output current. Additionally, avoid using ceramic capacitors with high ESL (Equivalent Series Inductance) as they can cause oscillations.
  • The ADP7157 has an absolute maximum input voltage rating of 6.5V. However, the recommended maximum input voltage is 5.5V to ensure reliable operation and to prevent damage to the device.
  • The ADP7157 is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and ensure proper thermal management to prevent overheating.
  • The output voltage of the ADP7157 is determined by the resistor divider network connected to the FB pin. The output voltage can be calculated using the formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.
