ADP7157ARDZ-02-R7 - Analog Devices

Description: 1.2 A, Ultralow Noise, High PSRR, Adjustable Output, RF Linear Regulator

Download ADP7157ARDZ-02-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

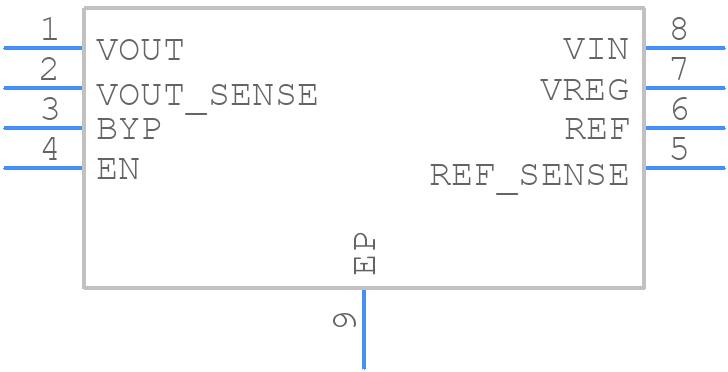

ADP7157ARDZ-02-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP7157ARDZ-02-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RD-8-1)
click to zoom
3D Models
ADP7157ARDZ-02-R7 - Analog Devices - 3D model - Small Outline Packages - (RD-8-1)
click to zoom

ADP7157ARDZ-02-R7 Details

  • Manufacturer Part Number:

    ADP7157ARDZ-02-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RD-8-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-03-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Line Regulation-Max (%/V):

    0.1

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.2 A

  • Output Voltage1-Max:

    2.3 V

  • Output Voltage1-Min:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADP7157ARDZ-02-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP7157ARDZ-02-R7 should include a solid ground plane, separate analog and digital power domains, and careful routing of sensitive signals. Additionally, it's recommended to place the device close to the power source and use short, wide traces for the output voltage lines.
  • To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, use a high-quality output capacitor with low ESR and a sufficient capacitance value. It's also important to decouple the input voltage with a capacitor and ensure the input voltage is well-regulated.
  • The ADP7157ARDZ-02-R7 can deliver up to 1.5A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. It's recommended to check the device's thermal performance and power dissipation to ensure it can handle the required output current.
  • The ADP7157ARDZ-02-R7 is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and power dissipation at high temperatures to ensure reliable operation.
  • To troubleshoot issues with the ADP7157ARDZ-02-R7, start by checking the input voltage, output voltage, and output current. Verify that the device is properly configured and that the recommended component values are used. Use an oscilloscope to check for noise, oscillations, or other anomalies on the output voltage. Consult the datasheet and application notes for guidance on troubleshooting specific issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADP7157ARDZ-02-R7 Overview

Use the download button to access the ADP7157ARDZ-02-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADP71, or try a keyword search, such as Linear Regulator ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
