ADP7159ACPZ-04-R7 - Analog Devices

Description: LDO Voltage Regulators 3.3/5Vin 2A Ultra Low Noise LDO, ADJ

Download ADP7159ACPZ-04-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

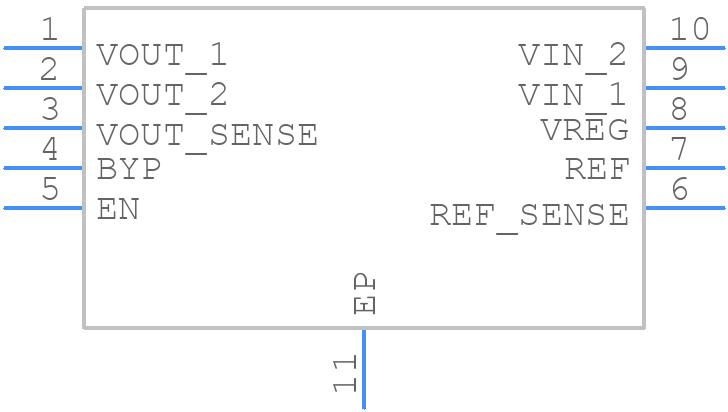

ADP7159ACPZ-04-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP7159ACPZ-04-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-10-9_2024
click to zoom
3D Models
ADP7159ACPZ-04-R7 - Analog Devices - 3D model - Small Outline No-lead - CP-10-9_2024
click to zoom

ADP7159ACPZ-04-R7 Details

  • Manufacturer Part Number:

    ADP7159ACPZ-04-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-03-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.1

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    3.3 V

  • Output Voltage1-Min:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    REEL

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADP7159ACPZ-04-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP7159 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance.
  • To ensure stability, ensure that the output capacitor is within the recommended range, the input voltage is within the specified range, and the device is operated within the recommended temperature range. Additionally, a minimum ESR (Equivalent Series Resistance) of 0.1 ohms is recommended for the output capacitor.
  • The ADP7159 can handle a maximum input voltage of 5.5V, but it's recommended to operate within the specified input voltage range of 2.7V to 5.5V for optimal performance and reliability.
  • The ADP7159 is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to operate the device within the specified temperature range of -40°C to 125°C for optimal performance and reliability.
  • The output voltage of the ADP7159 can be calculated using the formula: VOUT = VREF x (1 + R1/R2), where VREF is the internal reference voltage, and R1 and R2 are the resistors in the feedback network.
