ADP7159ARDZ-04-R7 - Analog Devices

Description: LDO Voltage Regulators 3.3/5Vin 2A Ultra Low Noise LDO ADJ

Download ADP7159ARDZ-04-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

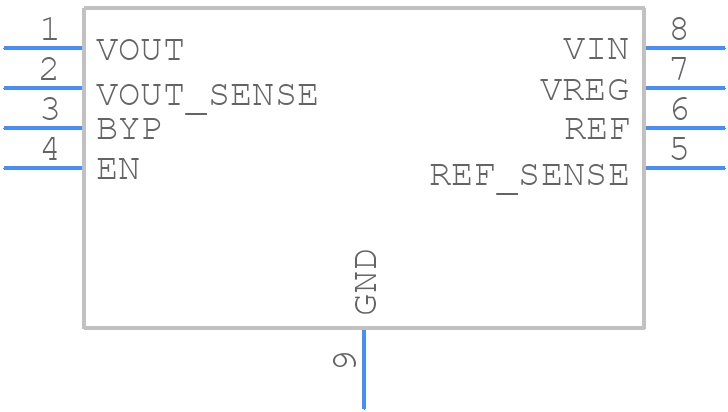

ADP7159ARDZ-04-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP7159ARDZ-04-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - ADP7159ARDZ-04-R7
click to zoom
3D Models
ADP7159ARDZ-04-R7 - Analog Devices - 3D model - Small Outline Packages - ADP7159ARDZ-04-R7
click to zoom

ADP7159ARDZ-04-R7 Details

  • Manufacturer Part Number:

    ADP7159ARDZ-04-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    RD-8-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-03-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Line Regulation-Max (%/V):

    0.1

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    3.3 V

  • Output Voltage1-Min:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Packing Method:

    REEL

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADP7159ARDZ-04-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP7159 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure the output capacitor is within the recommended range (10uF to 22uF), the input capacitor is at least 1uF, and the input voltage is within the recommended range. Also, ensure that the PCB layout is well-designed and the device is properly decoupled.
  • The ADP7159 can handle input voltages up to 14V, but it's recommended to operate within the recommended input voltage range of 3.5V to 12V for optimal performance and reliability.
  • The ADP7159 is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the output current and ensure proper thermal management to ensure reliable operation in high-temperature environments.
  • The output voltage of the ADP7159 can be calculated using the formula: VOUT = VREF x (1 + R1/R2), where VREF is the internal reference voltage (1.25V), and R1 and R2 are the resistors in the feedback network.
