ADP7182ACPZ-R7 - Analog Devices

Description: LDO Regulator Neg -1.22V to -27V -0.2A 8-Pin LFCSP EP T/R

Download ADP7182ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

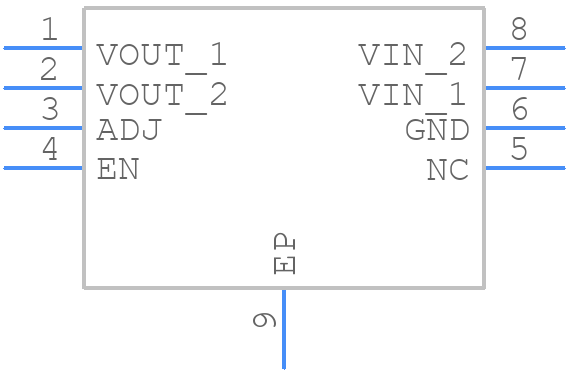

Symbol
ADP7182ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP7182ACPZ-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-13
click to zoom
3D Models
ADP7182ACPZ-R7 - Analog Devices - 3D model - Small Outline No-lead - CP-8-13
click to zoom

ADP7182ACPZ-R7 Details

  • Manufacturer Part Number:

    ADP7182ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-13

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Nom:

    0.185 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.01

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    28.36 V

  • Output Voltage1-Min:

    1.22 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE NEGATIVE SINGLE OUTPUT STANDARD REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADP7182ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP7182ACPZ-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the power and ground traces separate.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor is properly sized and that the input voltage is within the recommended range. It's also important to decouple the input and output pins with capacitors to prevent oscillation.
  • The ADP7182ACPZ-R7 can handle input voltages up to 15V, but it's recommended to operate within the recommended input voltage range of 4.5V to 14V for optimal performance and to prevent damage to the device.
  • The ADP7182ACPZ-R7 is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at higher temperatures to prevent overheating and ensure reliable operation.
  • To troubleshoot issues with the ADP7182ACPZ-R7, start by checking the input voltage, output voltage, and output current. Verify that the component values and PCB layout meet the recommended guidelines. Use an oscilloscope to check for noise and oscillations, and ensure that the device is properly decoupled and bypassed.
