ADP7183ACPZN-R7 - Analog Devices

Description: LDO Regulator Neg -0.5V to -5V -0.3A 8-Pin LFCSP EP T/R

Download ADP7183ACPZN-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

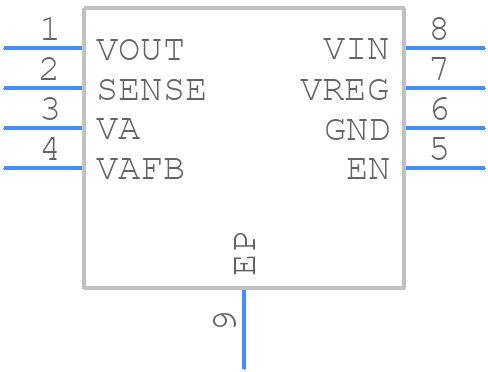

ADP7183ACPZN-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP7183ACPZN-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-27
click to zoom
3D Models
ADP7183ACPZN-R7 - Analog Devices - 3D model - Small Outline No-lead - CP-8-27
click to zoom

ADP7183ACPZN-R7 Details

  • Manufacturer Part Number:

    ADP7183ACPZN-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-27

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-10-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.22 V

  • Dropout Voltage1-Nom:

    0.13 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Line Regulation-Max (%/V):

    0.3

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.3 A

  • Output Voltage1-Max:

    6 V

  • Output Voltage1-Min:

    0.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.079,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE NEGATIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

ADP7183ACPZN-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP7183ACPZN-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the power and ground traces separate.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output with ceramic capacitors and to use a low-impedance output capacitor.
  • The ADP7183ACPZN-R7 can handle input voltages up to 15V, but it's recommended to operate within the specified input voltage range of 4.5V to 14V for optimal performance and reliability.
  • The ADP7183ACPZN-R7 is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at high temperatures to ensure reliability and prevent overheating.
  • To troubleshoot issues with the ADP7183ACPZN-R7, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are properly connected and of high quality. Check for noise and oscillations on the input and output lines, and ensure that the PCB layout is correct. If the issue persists, consult the datasheet and application notes for further guidance.
