ADP7183ACPZN1.0-R7 - Analog Devices

Description: LDO Voltage Regulators Ultra Low Noise, High PSRR #Negative LDO

Download ADP7183ACPZN1.0-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

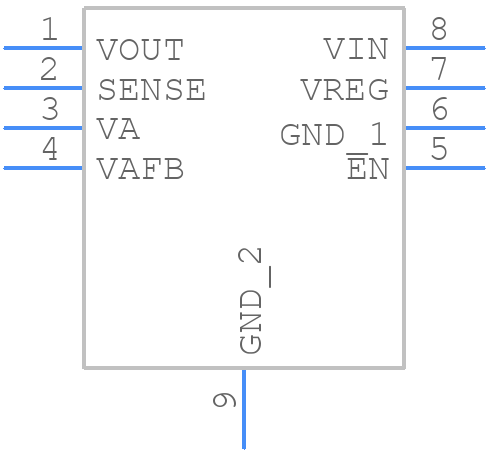

ADP7183ACPZN1.0-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP7183ACPZN1.0-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - ADP7183ACPZN1.0-R7-1
click to zoom
3D Models
ADP7183ACPZN1.0-R7 - Analog Devices - 3D model - Small Outline No-lead - ADP7183ACPZN1.0-R7-1
click to zoom

ADP7183ACPZN1.0-R7 Details

  • Manufacturer Part Number:

    ADP7183ACPZN1.0-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-27

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-10-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.22 V

  • Dropout Voltage1-Nom:

    0.13 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Line Regulation-Max:

    0.0045%

  • Load Regulation-Max:

    0.0078%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.3 A

  • Output Voltage1-Max:

    1.026 V

  • Output Voltage1-Min:

    0.974 V

  • Output Voltage1-Nom:

    1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.079SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED NEGATIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    2.6%

  • Width:

    2 mm

ADP7183ACPZN1.0-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP7183 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability and prevent oscillations, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure to use a sufficient output capacitor with a low ESR, and consider adding a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
  • The ADP7183 has an absolute maximum input voltage rating of 6V. However, the recommended maximum input voltage is 5.5V to ensure reliable operation and prevent damage to the device.
  • The ADP7183 is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and consider derating the device's performance at high temperatures.
  • The output voltage ripple of the ADP7183 can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency. A lower output voltage ripple can be achieved by using a larger output capacitor with a low ESR.
