ADPA0804 - TE Connectivity

Description: DIP Switch, Gold Contact Plating, Black, Polyphenylene Sulfide (PPS), 8 Switch, -30 – 85 °C [-22 – 185 °F], Piano (Side Actuated), ALCOSWITCH ADP

Download ADPA0804 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADPA0804 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

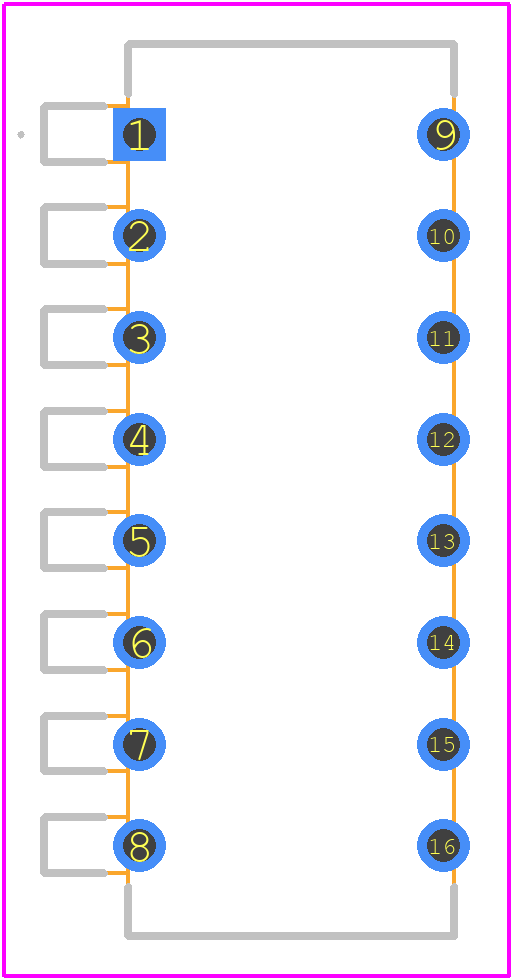

ADPA0804 - TE Connectivity PCB footprint - Other - Other - ADPA0804-1
click to zoom
3D Models
ADPA0804 - TE Connectivity - 3D model - Other - ADPA0804-1
click to zoom

ADPA0804 Details

  • Manufacturer Part Number:

    ADPA0804

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Factory Lead Time:

    19 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.5

  • Actuator Color:

    WHITE

  • Actuator Length:

    0.083 inch

  • Actuator Material:

    POLYAMIDE6T

  • Actuator Type:

    PIANO TYPE

  • Additional Feature:

    APPROVAL: UL

  • Body Breadth:

    8.15 mm

  • Body Color:

    BLACK

  • Body Height:

    6 mm

  • Body Length or Diameter:

    22.3 mm

  • Center Contact Material:

    COPPER ALLOY

  • Center Contact Plating:

    GOLD OVER NICKEL

  • Contact Current(AC)-Max:

    1 A

  • Contact Current(DC)-Max:

    0.1 A

  • Contact (DC) Max Rating R Load:

    0.1A@24VDC

  • Contact Resistance:

    0.1 mΩ

  • Contact Voltage(DC)-Max:

    24 V

  • Dielectric Withstand Volts:

    300VAC V

  • Electrical Life:

    1000 Cycle(s)

  • End Contact Material:

    COPPER ALLOY

  • End Contact Plating:

    GOLD OVER NICKEL

  • Housing Material:

    POLYPHENYLENE SULPHIDE

  • Insulation Resistance:

    100000000 Ω

  • Insulator Material:

    POLYPHENYLENE SULPHIDE

  • JESD-609 Code:

    e4

  • Mounting Feature:

    THROUGH HOLE-RIGHT ANGLE

  • Number of Positions:

    8

  • Number of Switch Sections:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • PCB Hole Count:

    16

  • Packing Method:

    BOX; TUBE

  • Surface Mount:

    NO

  • Switch Function:

    SPST

  • Switch Type:

    PIANO DIP SWITCH

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Terminal Length:

    0.157 inch

  • Terminal Material:

    COPPER ALLOY

  • Termination Type:

    SOLDER

ADPA0804 Frequently Asked Questions (FAQs)

  • TE Connectivity recommends a 4-layer PCB with a solid ground plane and a separate power plane for the ADPA0804. The device should be placed near the edge of the board to minimize signal reflections. A minimum of 10 mils of clearance around the device is recommended to ensure proper heat dissipation.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet. Additionally, ensure good thermal conductivity between the device and the PCB, and consider using a heat sink or thermal interface material if necessary.
  • TE Connectivity recommends a reflow soldering process with a peak temperature of 260°C (500°F) and a dwell time of 20-30 seconds. The device should be soldered using a solder with a melting point of 217°C (423°F) or higher. Hand soldering is not recommended due to the device's small size and high pin density.
  • While the ADPA0804 is designed for 50 ohm systems, it can be used in non-standard applications with some limitations. However, the device's performance may be affected, and additional circuitry may be required to ensure proper operation. It is recommended to consult with TE Connectivity's application engineers to determine the feasibility of using the ADPA0804 in a non-standard application.
  • The typical lead time for delivery of the ADPA0804 varies depending on the region, quantity, and availability. However, TE Connectivity typically quotes a lead time of 8-12 weeks for standard orders. Expedited delivery options may be available for an additional fee.
