ADPA1105ACGZN - Analog Devices

Description: RF Amplifier IC General Purpose 900MHz ~ 1.6GHz 32-LFCSP-CAV (5x5)

Download ADPA1105ACGZN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

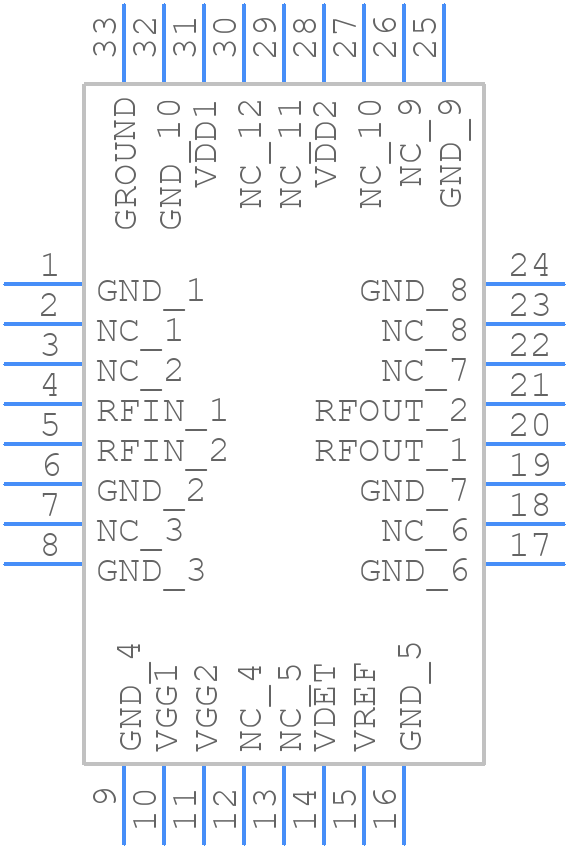

ADPA1105ACGZN - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADPA1105ACGZN - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CG-32-2
click to zoom
3D Models
ADPA1105ACGZN - Analog Devices - 3D model - Quad Flat No-Lead - CG-32-2
click to zoom

ADPA1105ACGZN Details

  • Manufacturer Part Number:

    ADPA1105ACGZN

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    32

  • Manufacturer Package Code:

    CG-32-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2020-10-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    30.5 dB

  • Input Power-Max (CW):

    30 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Frequency-Max:

    1600 MHz

  • Operating Frequency-Min:

    900 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Power Supplies:

    50 V

  • RF/Microwave Device Type:

    NARROW BAND HIGH POWER

  • Surface Mount:

    YES

  • Technology:

    GAN

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • VSWR-Max:

    1.5

ADPA1105ACGZN Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP1105ACGZN involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the input and output capacitors should be selected based on the specific application requirements, and the device should be operated within its recommended operating conditions.
  • The ADP1105ACGZN is rated for operation over a temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's essential to consider the specific application requirements and potential thermal management needs.
  • The ADP1105ACGZN is a commercial-grade device, and its reliability and performance may not meet the requirements of high-reliability or aerospace applications. For such applications, it's recommended to use devices specifically designed and qualified for those markets, such as the ADP1105WACGZN or other radiation-hardened or high-reliability devices.
  • To troubleshoot issues with the ADP1105ACGZN, start by verifying the device's operating conditions, including the input voltage, output voltage, and load current. Check the PCB layout and component values to ensure they meet the recommended guidelines. Use oscilloscopes and other diagnostic tools to identify any anomalies or oscillations in the output voltage or current.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADPA1105ACGZN Overview

Use the download button to access the ADPA1105ACGZN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADPA1, or try a keyword search, such as RF/Microwave Amplifiers
