ADPA1106ACGZN - Analog Devices

Description: 46 dBm (40 W), 2.7 GHz to 3.5 GHz, GaN Power Amplifier

Download ADPA1106ACGZN Model

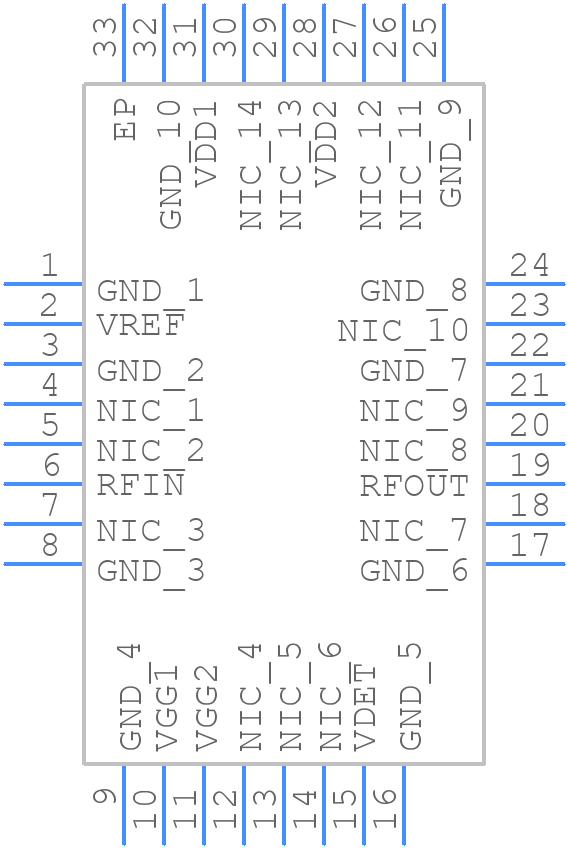

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADPA1106ACGZN - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package, Premolded Cavity [LFCSP_CAV]
click to zoom
3D Models
ADPA1106ACGZN - Analog Devices  - 3D model - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package, Premolded Cavity [LFCSP_CAV]
click to zoom

ADPA1106ACGZN Details

  • Manufacturer Part Number:

    ADPA1106ACGZN

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    32

  • Manufacturer Package Code:

    CG-32-2

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    33.5 dB

  • Input Power-Max (CW):

    30 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Frequency-Max:

    3500 MHz

  • Operating Frequency-Min:

    2700 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Power Supplies:

    50 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Surface Mount:

    YES

  • Technology:

    GAN

  • VSWR-Max:

    2.1

ADPA1106ACGZN Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the ADP1106ACGZN. Ensure that the input and output capacitors are placed close to the device, and the power traces are wide and short. Use a solid ground plane and avoid routing high-frequency signals under the device. Refer to the ADP1106 evaluation board layout as a reference.
  • Choose X5R or X7R ceramic capacitors with a voltage rating of at least 2x the input voltage. For the input capacitor, a value between 1uF to 10uF is recommended. For the output capacitor, a value between 1uF to 22uF is recommended. Ensure the capacitors are placed close to the device and have low ESR.
  • The ADP1106ACGZN can handle input voltages up to 36V, but it's recommended to operate within the specified input voltage range of 4.5V to 28V for optimal performance and reliability.
  • The ADP1106ACGZN is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. Ensure proper thermal management and consider derating the output current at high temperatures.
  • Ensure that the input and output capacitors are properly selected and placed close to the device. Avoid using capacitors with high ESR, and ensure that the power traces are short and wide. Also, add a small ceramic capacitor (e.g., 10nF) between the VIN and GND pins to improve stability.
