ADPA1116ACGZN-R7 - Analog Devices

Description: Internally matched, 0.3 GHz to 6 GHz, 39.5 dBm, GaN power amplifier ► RF input and RF output AC-coupled ► Integrated drain bias inductors ► Output power: 39.5 dBm typical from 0.5 GHz to 5 GHz (PIN = 16.0 dBm) ► Power gain: 23.5 dB typical from 0.5 GHz to 5 GHz (PIN = 16.0 dBm) ► PAE: 40% typical from 0.5 GHz to 5 GHz (PIN = 16.0 dBm) ► Small signal gain: 33.5 dB typical from 0.5 GHz to 5 GHz ► Supply voltage: 28 V ► Quiescent current: 300 mA

Download ADPA1116ACGZN-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

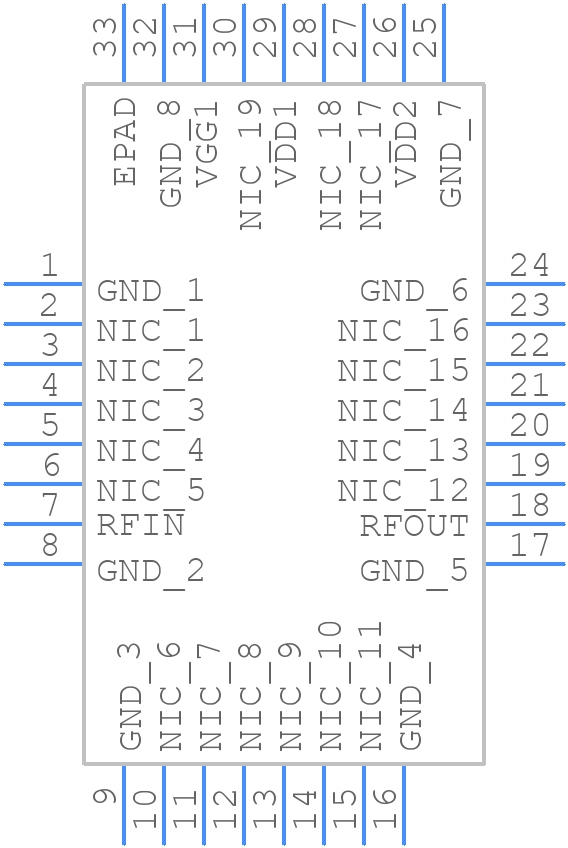

ADPA1116ACGZN-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADPA1116ACGZN-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CG-32-2
click to zoom
3D Models
ADPA1116ACGZN-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CG-32-2
click to zoom

ADPA1116ACGZN-R7 Details

  • Manufacturer Part Number:

    ADPA1116ACGZN-R7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-609 Code:

    e4

  • RF/Microwave Device Type:

    POWER AMPLIFIER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADPA1116ACGZN-R7 Overview

Use the download button to access the ADPA1116ACGZN-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADPA1, or try a keyword search, such as RF/Microwave Amplifiers
