ADPD2211ACPZ-R7 - Analog Devices

Description: Photo IC Sensors Ultra-Low Noise Integr Int Sensor

Download ADPD2211ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

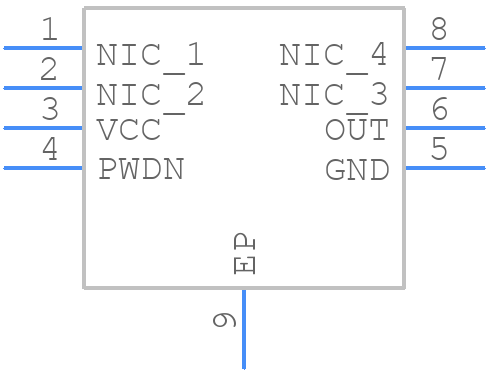

ADPD2211ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADPD2211ACPZ-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - ADPD2211ACPZ-R7
click to zoom
3D Models
ADPD2211ACPZ-R7 - Analog Devices - 3D model - Small Outline No-lead - ADPD2211ACPZ-R7
click to zoom

ADPD2211ACPZ-R7 Details

  • Manufacturer Part Number:

    ADPD2211ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, 0.65 MM HEIGHT, ROHS COMPLIANT, PLASTIC, LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-22

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-04-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.7 mm

  • Supply Voltage-Max (Vsup):

    5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADPD2211ACPZ-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for decoupling and place it close to the device.
  • Calibrate the device regularly, use a high-quality sensor, and ensure proper sensor placement and alignment. Also, minimize noise and interference by using shielding and filtering, and ensure a stable power supply.
  • The maximum cable length for the I2C interface is 10 meters (33 feet) with a maximum capacitance of 400 pF. However, it's recommended to keep the cable length as short as possible to minimize signal degradation.
  • Yes, the ADPD2211ACPZ-R7 can operate with a 3.3V power supply. However, the device's performance may be affected, and the output voltage range may be limited. Consult the datasheet for specific details on operating conditions.
  • Check the power supply voltage, ensure proper connections, and verify the I2C communication. Use a logic analyzer or oscilloscope to debug the I2C bus. Consult the datasheet and application notes for troubleshooting guidelines.
