ADPD2212ACPZ-R7 - Analog Devices

Description: ANALOG DEVICES - ADPD2212ACPZ-R7 - OPTICAL SENSOR, 400KHZ, LFCSP-10

Download ADPD2212ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

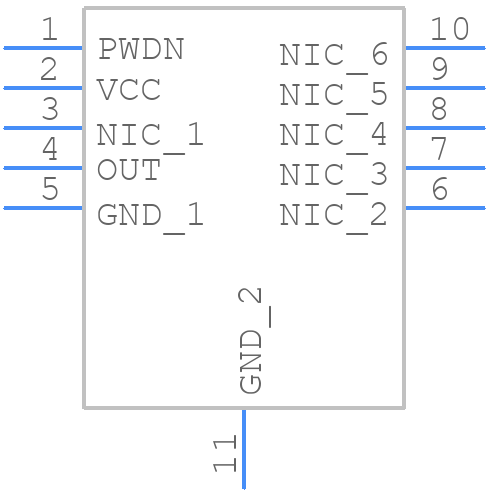

Symbol
ADPD2212ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADPD2212ACPZ-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - ADPD2212ACPZ-R7
click to zoom
3D Models
ADPD2212ACPZ-R7 - Analog Devices - 3D model - Small Outline No-lead - ADPD2212ACPZ-R7
click to zoom

ADPD2212ACPZ-R7 Details

  • Manufacturer Part Number:

    ADPD2212ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    4 X 3 MM, 0.65 MM HEIGHT, ROHS COMPLIANT, PLASTIC, LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-13

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-04-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-N10

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.7 mm

  • Supply Voltage-Max (Vsup):

    5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADPD2212ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADPD2212ACPZ-R7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the photodiode and the analog circuitry. A 4-layer PCB with a dedicated analog ground layer is recommended. Additionally, the photodiode should be placed as close as possible to the ADC input pins to minimize noise pickup.
  • Calibration of the ADPD2212ACPZ-R7 involves adjusting the gain and offset of the ADC to match the specific optical sensor and application. This can be done by measuring the output of the ADC with a known input optical signal and adjusting the gain and offset registers accordingly. The datasheet provides a calibration procedure that can be followed.
  • The ADPD2212ACPZ-R7 can handle ambient light intensities up to 100,000 lux, making it suitable for use in a variety of applications, including outdoor environments. However, it's recommended to use an optical filter or shielding to reduce ambient light interference and ensure accurate measurements.
  • Yes, the ADPD2212ACPZ-R7 is suitable for pulse oximetry applications due to its high sensitivity, low noise, and fast response time. The device can detect the small changes in optical absorption caused by the pulsing of blood in the body, allowing for accurate measurement of heart rate and oxygen saturation.
  • The ADPD2212ACPZ-R7 can be interfaced with a microcontroller using the I2C or SPI interface. The device requires a 1.8V power supply and a clock signal, which can be provided by the microcontroller. The microcontroller can then read the ADC output data from the ADPD2212ACPZ-R7 using the I2C or SPI interface.
