ADPD2214ACPZ-R7 - Analog Devices

Description: ANALOG DEVICES - ADPD2214ACPZ-R7 - OPTICAL SENSOR, 75KHZ, LFCSP-10

Download ADPD2214ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

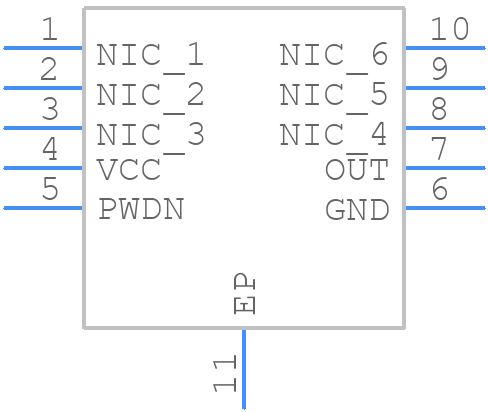

ADPD2214ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADPD2214ACPZ-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - (CP-10-14)
click to zoom
3D Models
ADPD2214ACPZ-R7 - Analog Devices - 3D model - Small Outline No-lead - (CP-10-14)
click to zoom

ADPD2214ACPZ-R7 Details

  • Manufacturer Part Number:

    ADPD2214ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    4 X 4 MM, 0.65 MM HEIGHT, ROHS COMPLIANT, PLASTIC, LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-04-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.7 mm

  • Supply Voltage-Max (Vsup):

    5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADPD2214ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADPD2214ACPZ-R7 involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing noise coupling between the photodiode and the analog-to-digital converter (ADC). A 4-layer PCB with a dedicated ground plane and a separate analog power plane is recommended. Additionally, the photodiode should be placed close to the ADC to minimize noise and ensure optimal performance.
  • Calibration of the ADPD2214ACPZ-R7 involves adjusting the gain and offset of the ADC to match the specific application requirements. This can be done by applying a known optical input and adjusting the gain and offset registers to achieve the desired output. Additionally, the device can be calibrated using an external calibration signal or by using the built-in calibration features of the device.
  • The ADPD2214ACPZ-R7 can tolerate ambient light intensities up to 100,000 lux, making it suitable for use in a variety of applications, including outdoor and high-brightness environments. However, it's recommended to use an optical filter or shielding to minimize the impact of ambient light on the device's performance.
  • Yes, the ADPD2214ACPZ-R7 is suitable for pulse oximetry applications due to its high sensitivity, low noise, and high dynamic range. The device can detect the small changes in optical signals required for pulse oximetry measurements, making it a popular choice for wearable and medical devices.
  • The ADPD2214ACPZ-R7 can be interfaced with a microcontroller using a serial peripheral interface (SPI) or an inter-integrated circuit (I2C) interface. The device requires a 1.8V to 3.6V power supply and a clock signal, which can be provided by the microcontroller. The microcontroller can then read the optical data from the ADPD2214ACPZ-R7 using the SPI or I2C interface.
