ADPD4100BCBZR7 - Analog Devices

Description: Analog Front End - AFE Optical AFE for wearables-SPI

Download ADPD4100BCBZR7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

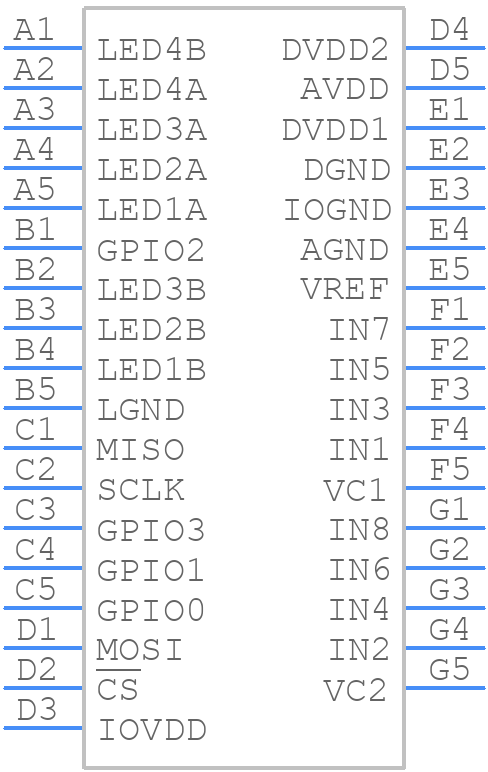

ADPD4100BCBZR7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADPD4100BCBZR7 - Analog Devices PCB footprint - BGA - BGA - 35-Ball [WLCSP]
click to zoom
3D Models
ADPD4100BCBZR7 - Analog Devices - 3D model - BGA - 35-Ball [WLCSP]
click to zoom

ADPD4100BCBZR7 Details

  • Manufacturer Part Number:

    ADPD4100BCBZR7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-35

  • Pin Count:

    35

  • Manufacturer Package Code:

    CB-35-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-06-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PBGA-B35

  • Length:

    3.11 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    35

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA35,5X7,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.56 mm

  • Supply Voltage-Max (Vsup):

    1.9 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.14 mm

ADPD4100BCBZR7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for power decoupling and place it close to the device.
  • Calibrate the device regularly, use a high-quality sensor, and ensure proper sensor placement. Minimize noise and interference by using a shielded cable and keeping the device away from high-frequency sources.
  • The maximum cable length for the I2C interface is 10 meters (33 feet). However, this can be extended up to 100 meters (330 feet) using I2C bus extenders or repeaters.
  • Yes, the ADPD4100 can operate with a 3.3V power supply. However, the device's performance may be affected, and the output voltage range may be reduced. Consult the datasheet for specific details.
  • Check the power supply voltage, ensure proper connections, and verify the I2C communication. Use a logic analyzer or oscilloscope to debug the I2C bus. Consult the datasheet and application notes for troubleshooting guides.
