ADPD4101BCBZR7 - Analog Devices

Description: Analog Front End - AFE Optical AFE for wearables-I2C

Download ADPD4101BCBZR7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

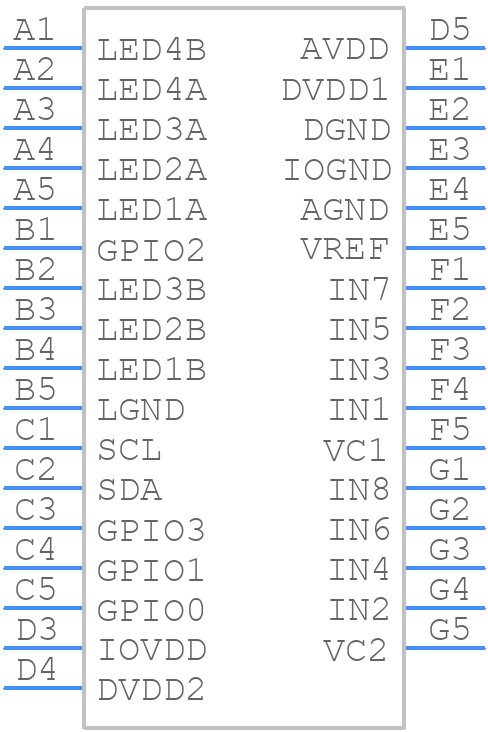

ADPD4101BCBZR7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADPD4101BCBZR7 - Analog Devices PCB footprint - BGA - BGA - WLCSP
click to zoom
3D Models
ADPD4101BCBZR7 - Analog Devices - 3D model - BGA - WLCSP
click to zoom

ADPD4101BCBZR7 Details

  • Manufacturer Part Number:

    ADPD4101BCBZR7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-33

  • Pin Count:

    33

  • Manufacturer Package Code:

    CB-33-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-06-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PBGA-B33

  • JESD-609 Code:

    e2

  • Length:

    3.11 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    33

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA33,5X7,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.56 mm

  • Supply Voltage-Max (Vsup):

    1.9 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.14 mm

ADPD4101BCBZR7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for decoupling and place it close to the device.
  • Calibrate the device regularly, use a high-quality sensor, and ensure proper sensor placement. Also, consider the effects of temperature, humidity, and ambient light on the measurements.
  • The maximum cable length for the I2C interface is 10 meters (33 feet) with a maximum capacitance of 400 pF. However, it's recommended to keep the cable length as short as possible to minimize signal degradation.
  • Yes, the ADPD4101BCBZR7 can operate with a 3.3V power supply. However, ensure that the power supply is clean and well-regulated to avoid noise and interference.
  • The interrupt output is an active-low, open-drain output. Connect a pull-up resistor to a suitable voltage source (e.g., VCC) and ensure the interrupt line is properly debounced to avoid false triggers.
