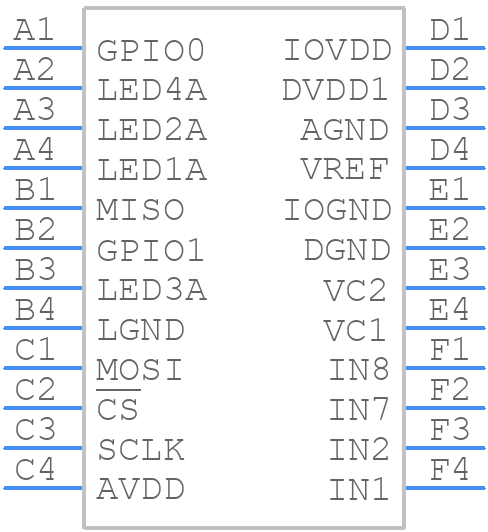

ADPD4200BCBZR7 - Analog Devices

ADPD4200BCBZR7 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the ADPD4200?
  A good PCB layout is crucial for the ADPD4200's performance. Analog Devices recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The device's pins should be connected to the PCB with short, direct traces, and the decoupling capacitors should be placed close to the device. A reference design is available in the ADPD4200 evaluation board's documentation.
• How do I calibrate the ADPD4200 for accurate measurements?
  The ADPD4200 requires calibration to ensure accurate measurements. Calibration involves setting the device's gain and offset registers. Analog Devices provides a calibration procedure in the ADPD4200 datasheet, which involves measuring the device's output with a known input signal and adjusting the gain and offset registers accordingly. The calibration process can be automated using the ADPD4200's built-in calibration engine.
• What is the maximum ambient light intensity that the ADPD4200 can handle?
  The ADPD4200 is designed to operate in high-ambient-light environments, but it has a limited dynamic range. The maximum ambient light intensity that the device can handle depends on the specific application and the desired accuracy. As a general rule, the device can handle ambient light intensities up to 100,000 lux, but this may vary depending on the specific use case. It's recommended to consult with Analog Devices' application engineers for specific guidance.
• Can I use the ADPD4200 with a non-invasive optical sensor?
  Yes, the ADPD4200 can be used with non-invasive optical sensors, such as reflective sensors or transmissive sensors. However, the device's performance may vary depending on the specific sensor design and the application. It's recommended to consult with Analog Devices' application engineers to ensure that the ADPD4200 is compatible with the chosen sensor and to optimize the system's performance.
• How do I ensure electromagnetic compatibility (EMC) with the ADPD4200?
  To ensure EMC with the ADPD4200, it's essential to follow proper PCB design and layout practices, such as using a solid ground plane, separating analog and digital signals, and using shielding and filtering components as needed. Additionally, the device's power supply should be decoupled and filtered to minimize electromagnetic interference. Analog Devices provides EMC guidelines in the ADPD4200 datasheet and application notes.
