ADPL13602BATE+ - Analog Devices

Description: 3.5V to 36V, 2.4A, High-Efficiency, Synchronous Step-Down DC-DC Converter

Download ADPL13602BATE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

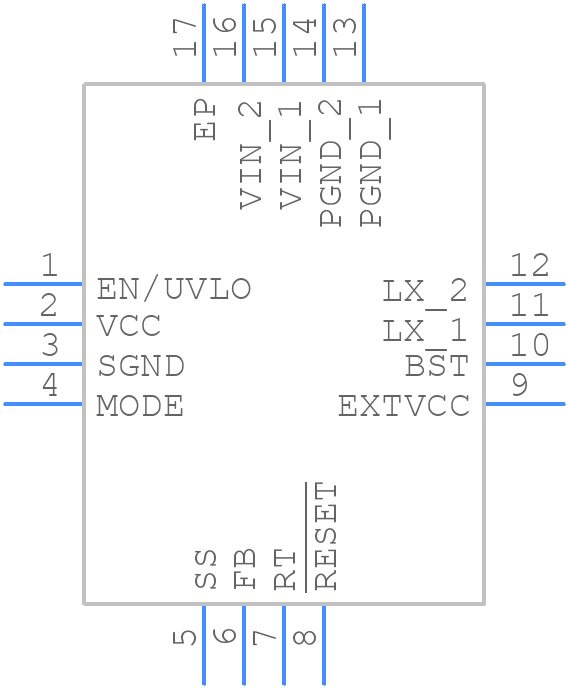

ADPL13602BATE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADPL13602BATE+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ADPL13602BATE+-9
click to zoom
3D Models
ADPL13602BATE+ - Analog Devices - 3D model - Quad Flat No-Lead - ADPL13602BATE+-9
click to zoom

ADPL13602BATE+ Details

  • Manufacturer Part Number:

    ADPL13602BATE+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFN-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.4 A

  • Output Voltage-Max:

    32.4 V

  • Output Voltage-Min:

    1 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1500 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADPL13602BATE+ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and coupling. Use a common mode choke or ferrite bead to filter the input power.
  • Ensure the output capacitor is properly sized and placed close to the output pin. Use a low-ESR capacitor and avoid using ceramic capacitors. Also, make sure the input voltage is well-regulated and filtered to prevent noise and ripple.
  • The absolute maximum input voltage rating is 18V, but it's recommended to operate the device within the specified input voltage range (4.5V to 15V) to ensure reliable operation and prevent damage.
  • The device is rated for operation up to 125°C, but the junction temperature should not exceed 150°C. Ensure proper thermal management, such as using a heat sink or thermal pad, to prevent overheating and reduce the risk of thermal shutdown.
  • Use an oscilloscope to monitor the input and output voltages, as well as the switching node. Check for noise, ringing, or oscillations on the output. Verify the input voltage, output capacitor, and feedback resistors are properly connected and sized. Consult the datasheet and application notes for troubleshooting guidelines.
