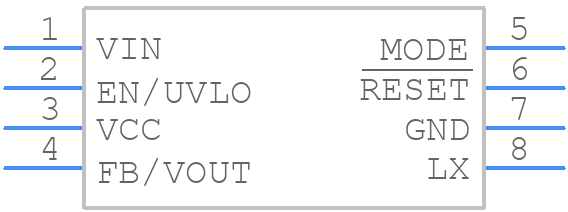

ADPL16000BATA+ - Analog Devices

ADPL16000BATA+ Details

• Manufacturer Part Number:

  ADPL16000BATA+

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  TDFN-8

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PWM/PFM

• Input Voltage-Max:

  60 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  S-PDSO-N8

• Length:

  2 mm

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.4 A

• Output Voltage-Max:

  5.18 V

• Output Voltage-Min:

  4.93 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  WSON

• Package Equivalence Code:

  SOLCC8,.08,20

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, VERY VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.8 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  535 kHz

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  10

• Width:

  2 mm
