ADPL26001ES6#TRPBF - Analog Devices

Description: Switching Voltage Regulators L IQ Boost/SEPIC/Inv Conv w/ 1A, 60V Swi

Download ADPL26001ES6#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

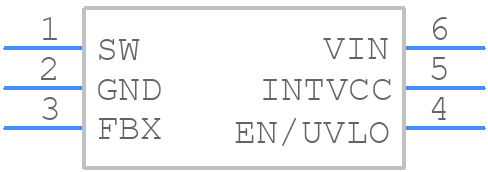

Symbol
ADPL26001ES6#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADPL26001ES6#TRPBF - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - ADPL26001ES6#TRPBF
click to zoom
3D Models
ADPL26001ES6#TRPBF - Analog Devices - 3D model - SOT23 (6-Pin) - ADPL26001ES6#TRPBF
click to zoom

ADPL26001ES6#TRPBF Details

  • Manufacturer Part Number:

    ADPL26001ES6#TRPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOT-23, 6 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    IT CAN ALSO CONFIGURED AS INVERTING CONVERTER

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3.2 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G6

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2200 kHz

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Width:

    1.625 mm
