ADPL54203ES8E#PBF - Analog Devices

Description: 40VIN Micropower No-Opto Isolated Flyback Converter with 60V/3.4A Switch

Download ADPL54203ES8E#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

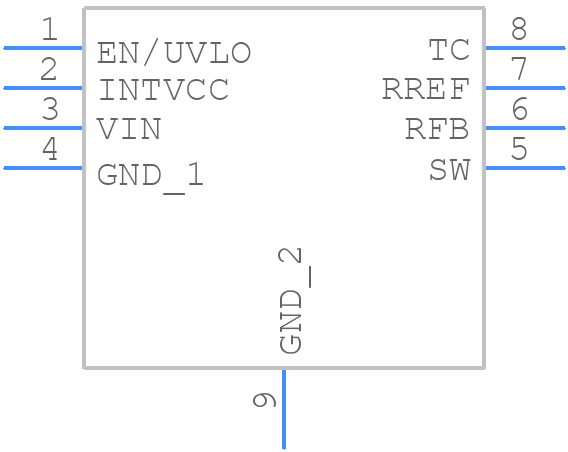

Symbol
ADPL54203ES8E#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADPL54203ES8E#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - ADPL54203ES8E#PBF
click to zoom
3D Models
ADPL54203ES8E#PBF - Analog Devices - 3D model - Small Outline Packages - ADPL54203ES8E#PBF
click to zoom

ADPL54203ES8E#PBF Details

  • Manufacturer Part Number:

    ADPL54203ES8E#PBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    3.2 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Seated Height-Max:

    1.752 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    380 kHz

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.899 mm

ADPL54203ES8E#PBF Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout guide in the ADPL54203ES8E datasheet, which includes guidelines for component placement, routing, and thermal management. Additionally, the company offers a PCB layout review service to ensure optimal performance.
  • To ensure reliability and longevity, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and keeping the device within its recommended operating temperature range. Additionally, Analog Devices provides reliability data and guidelines in the datasheet and application notes.
  • While the ADPL54203ES8E is designed for isolated applications, it can be used in non-isolated applications with proper precautions. This includes ensuring that the input and output voltages are within the recommended range, and that the device is properly bypassed and filtered to minimize noise and EMI.
  • The maximum output current capability of the ADPL54203ES8E is 2A per channel. Exceeding this limit can lead to thermal issues and reduced device lifespan. It's essential to ensure that the output current is within the recommended range and that proper thermal management practices are followed to prevent overheating.
  • Analog Devices provides troubleshooting guides and application notes that cover common issues with the ADPL54203ES8E. Additionally, the company offers technical support and resources, such as FAQs, knowledge base articles, and online forums, to help engineers troubleshoot and resolve issues quickly.
