ADPL54203ES8E#TRPBF - Analog Devices

Description: 40VIN Micropower No-Opto Isolated Flyback Converter with 60V/3.4A Switch

Download ADPL54203ES8E#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

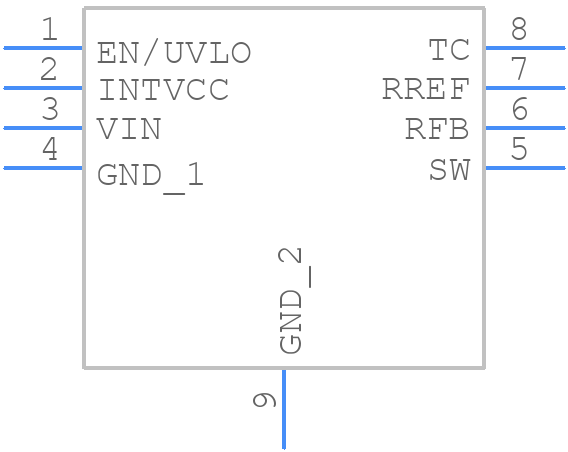

ADPL54203ES8E#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADPL54203ES8E#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - ADPL54203ES8E#-9TRPBF
click to zoom
3D Models
ADPL54203ES8E#TRPBF - Analog Devices - 3D model - Small Outline Packages - ADPL54203ES8E#-9TRPBF
click to zoom

ADPL54203ES8E#TRPBF Details

  • Manufacturer Part Number:

    ADPL54203ES8E#TRPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    3.2 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Seated Height-Max:

    1.752 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    380 kHz

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.899 mm

ADPL54203ES8E#TRPBF Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the ADPL54203ES8E evaluation board documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The selection of input and output capacitors depends on the specific application requirements, such as output voltage, current, and ripple. Analog Devices provides guidelines for capacitor selection in the datasheet and application notes, and recommends using low-ESR capacitors with a high ripple current rating.
  • The ADPL54203ES8E has an operating temperature range of -40°C to +125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Engineers should ensure proper thermal management and heat sinking to maintain a safe operating temperature.
  • Analog Devices provides troubleshooting guides and application notes that cover common issues and their solutions. Engineers can also use simulation tools and Spice models to simulate the circuit and identify potential issues before prototyping.
  • Yes, the ADPL54203ES8E is compatible with lead-free soldering processes and meets the requirements of the RoHS (Restriction of Hazardous Substances) directive.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADPL54203ES8E#TRPBF Overview

Use the download button to access the ADPL54203ES8E#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADPL5, or try a keyword search, such as Switching Regulator or Controllers
