ADPM12160CMLZCL - Analog Devices

Description: 1600W, Nonisolated Quarter-Brick DC-DC Power Module ,58.4mm × 36.8mm × 15.1mm -40°C to +85°C,45A

Download ADPM12160CMLZCL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

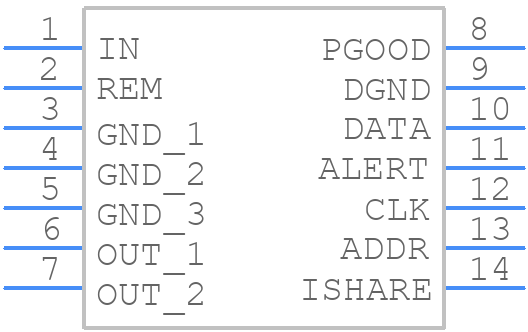

ADPM12160CMLZCL - Analog Devices - PCB symbol
click to zoom
PCB Footprints

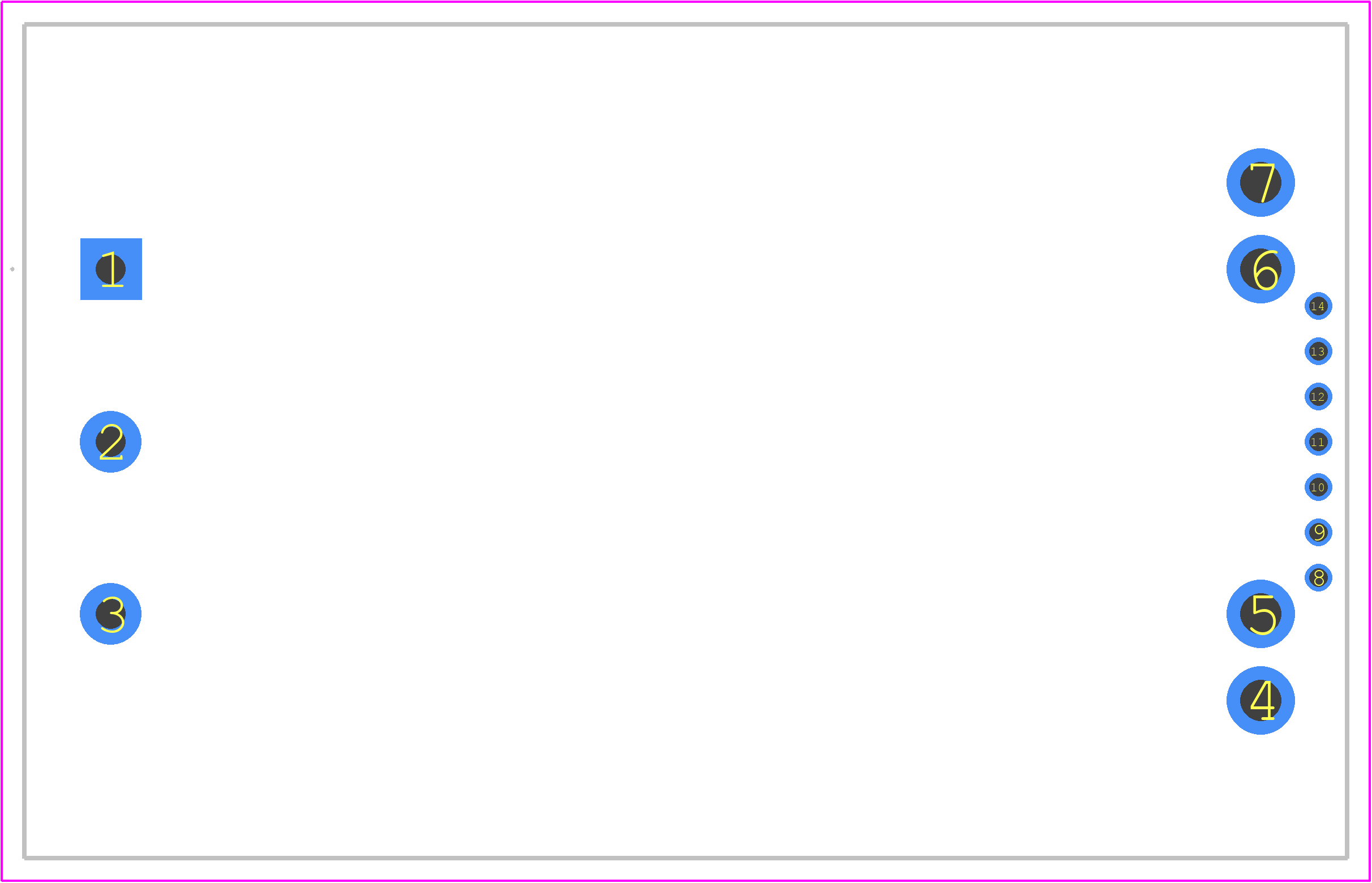

ADPM12160CMLZCL - Analog Devices PCB footprint - Other - Other - ML-14-11_2025-1.11
click to zoom
3D Models
ADPM12160CMLZCL - Analog Devices - 3D model - Other - ML-14-11_2025-1.11
click to zoom

ADPM12160CMLZCL Details

  • Manufacturer Part Number:

    ADPM12160CMLZCL

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADPM12160CMLZCL Overview

Use the download button to access the ADPM12160CMLZCL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADPM1, or try a keyword search, such as Power Supply Modules
