ADQ-180+ - Mini-Circuits

Description: Signal Conditioning PWR SPLTR CMBD / SURF MT/ RoHS

Download ADQ-180+ Model
Schematic

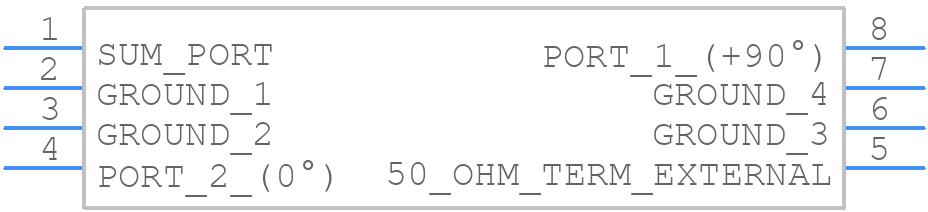

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADQ-180+ - Mini-Circuits PCB footprint - Other - Other - ADQ-180+-1_2021
click to zoom
3D Models
ADQ-180+ - Mini-Circuits  - 3D model - Other - ADQ-180+-1_2021
click to zoom

ADQ-180+ Details

  • Manufacturer Part Number:

    ADQ-180+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, CASE CJ725, 8 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Additional Feature:

    ISOLATION-MIN (DB):20

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    26.99 dBm

  • Insertion Loss-Max:

    0.7 dB

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    180 MHz

  • Operating Frequency-Min:

    120 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    COMBINER

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.09
