ADRF5019BCPZN-R7 - Analog Devices

Description: RF Switch ICs SPDT 10MHz-13GHZ 100ns switching time

Download ADRF5019BCPZN-R7 Model

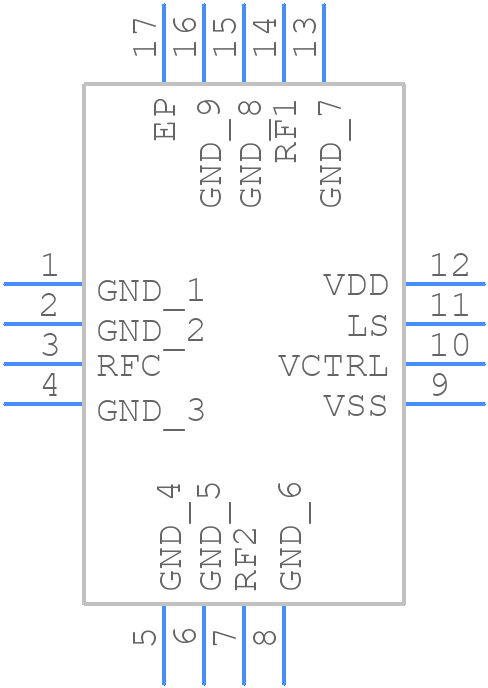

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADRF5019BCPZN-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-Lead Lead Frame Chip Scale Package [LFCSP]-
click to zoom
3D Models
ADRF5019BCPZN-R7 - Analog Devices  - 3D model - Quad Flat No-Lead - 16-Lead Lead Frame Chip Scale Package [LFCSP]-
click to zoom

ADRF5019BCPZN-R7 Details

  • Manufacturer Part Number:

    ADRF5019BCPZN-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-38

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • 1dB Compression Point:

    28 dBm

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    23 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • On Time-Nom:

    0.285 µs

  • Operating Frequency-Max:

    13000 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    3.3 V

  • RF/Microwave Device Type:

    DIVERSITY SWITCH

  • Surface Mount:

    YES

ADRF5019BCPZN-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces short and away from the digital lines. Use a common mode filter or a pi-filter to reduce EMI.
  • Ensure the VCC pin is connected to a stable 5V power supply, and the VEE pin is connected to a stable -5V power supply. Use a voltage regulator or a voltage reference to generate the required voltages.
  • The recommended input impedance is 50 ohms, and the recommended output impedance is also 50 ohms. Ensure the input and output are properly matched to minimize reflections and ensure optimal performance.
  • Use a shielded enclosure, keep the RF traces short, and use a common mode filter or a pi-filter to reduce EMI. Ensure the power supply is well-regulated and decoupled. Use a low-pass filter or a band-pass filter to reduce out-of-band noise.
  • The maximum operating temperature range for the ADRF5019BCPZN-R7 is -40°C to +125°C. Ensure the device is operated within this range to ensure optimal performance and reliability.
