ADRF5040BCPZ-R7 - Analog Devices

Description: RF Switch ICs High isolation,SP4T,9kHz -12GHz

Download ADRF5040BCPZ-R7 Model
Schematic
symbols

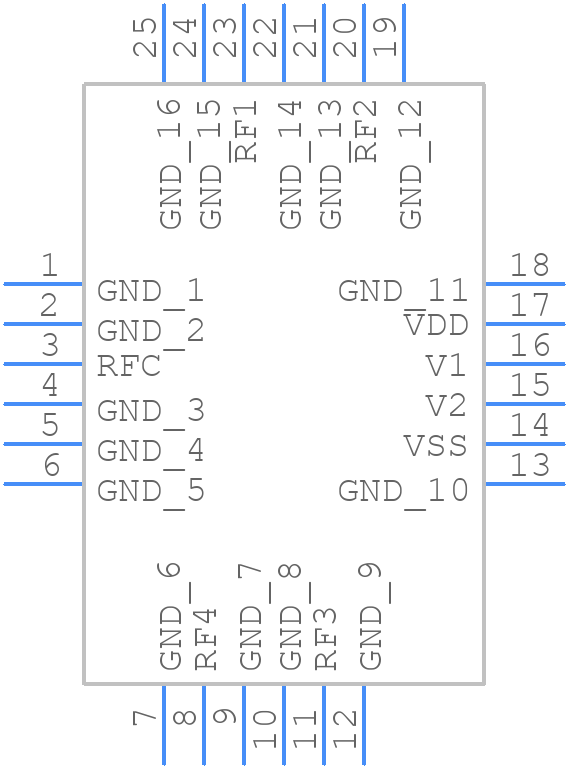

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADRF5040BCPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Lead Lead Frame Chip Scale Package [LFCSP](CP-24-16)
click to zoom
3D Models
ADRF5040BCPZ-R7 - Analog Devices  - 3D model - Quad Flat No-Lead - 24-Lead Lead Frame Chip Scale Package [LFCSP](CP-24-16)
click to zoom

ADRF5040BCPZ-R7 Details

  • Manufacturer Part Number:

    ADRF5040BCPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-16

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-07-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • 1dB Compression Point:

    37 dBm

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    34 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • On Time-Nom:

    3.5 µs

  • Operating Frequency-Max:

    12000 MHz

  • Operating Frequency-Min:

    0.009 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    +-3.3 V

  • RF/Microwave Device Type:

    SP4T

  • Supply Current-Max:

    0.1 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)
