ADRF5040BCPZ footprint, schematic symbol and 3D model by Analog Devices

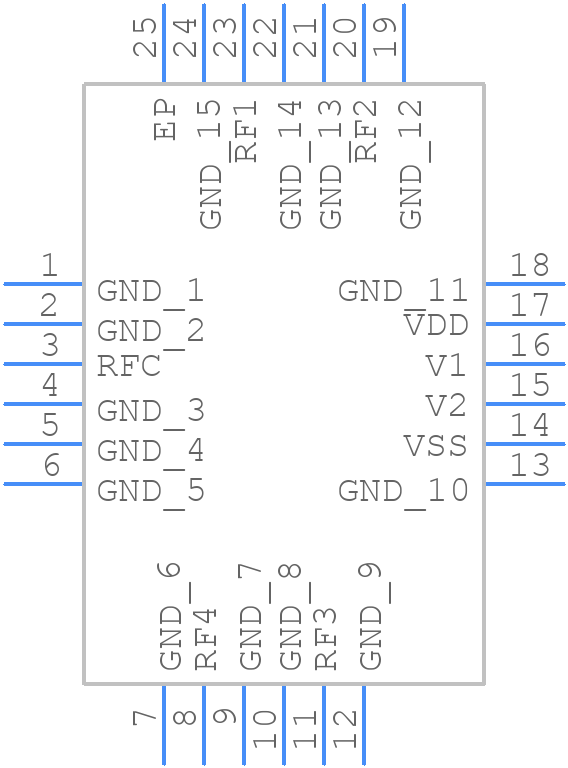

Symbol

click to zoom

PCB Footprints

ADRF5040BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-16

click to zoom

3D Models

ADRF5040BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-24-16

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ADRF5040BCPZ
Part Number ADRF5040BCPZ
Manufacturer Analog Devices
Pin Count 25
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - CP-24-16
Released Date Apr 3, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ADRF5040BCPZ Details

Manufacturer Part Number:
ADRF5040BCPZ
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
LFCSP-24
Pin Count:
24
Manufacturer Package Code:
CP-24-16
Country Of Origin:
South Korea
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Date Of Intro:
2016-07-19
Manufacturer:
Analog Devices Inc
YTEOL:
8.5
1dB Compression Point:
37 dBm
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
Input Power-Max (CW):
34 dBm
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Functions:
1
Number of Terminals:
24
On Time-Nom:
3.5 µs
Operating Frequency-Max:
12000 MHz
Operating Frequency-Min:
0.009 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Equivalence Code:
LCC24,.16SQ,20
Port Termination:
ABSORPTIVE
Power Supplies:
+-3.3 V
RF/Microwave Device Type:
SP4T
Supply Current-Max:
0.1 mA
Surface Mount:
YES
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)

ADRF5040BCPZ Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces short and away from the digital lines. Use a common mode filter or a pi-filter to reduce EMI.
Ensure the VCC pin is connected to a stable 5V power supply, and the VEE pin is connected to a stable -5V power supply. Use a voltage regulator to regulate the power supply, and decouple the power supply lines with capacitors.
The ADRF5040BCPZ can handle up to 30 dBm of input power. However, it's recommended to operate it at a maximum of 20 dBm to ensure optimal performance and prevent damage to the device.
Use the internal bias circuitry to optimize the device for the desired frequency band. Adjust the bias voltage and current to achieve the optimal performance. Consult the datasheet and application notes for specific guidance.
The recommended operating temperature range for the ADRF5040BCPZ is -40°C to 85°C. However, the device can operate up to 125°C with reduced performance and reliability.

Trust Checks

Expert Contribution

System Verified

Community Approved

ADRF5040BCPZ Overview

Use the download button to access the ADRF5040BCPZ schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ADRF5, or try a keyword search, such as RF/Microwave Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
