ADRF5130BCPZ-R7 - Analog Devices

Description: RF Switch SPDT 700MHz to 3.5GHz 46dB 24-Pin LFCSP EP T/R

Download ADRF5130BCPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

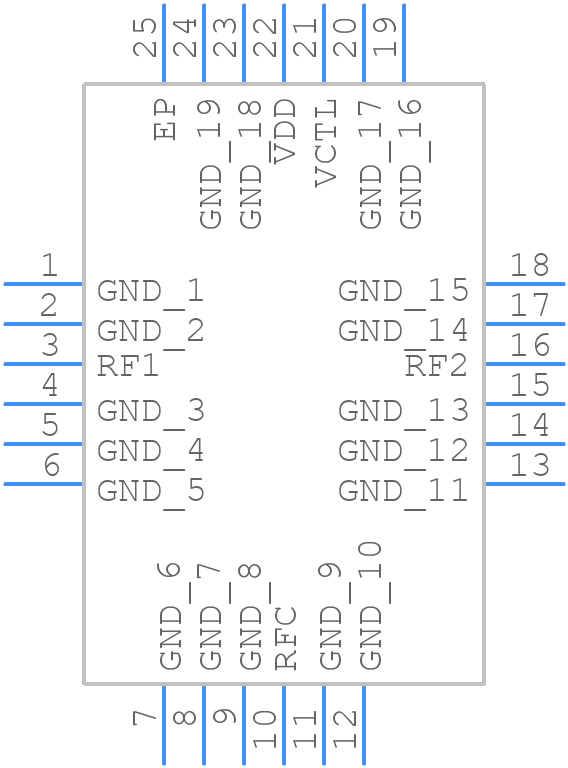

Symbol
ADRF5130BCPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADRF5130BCPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Lead Lead Frame Chip Scale Package [LFCSP] 4 mm × 4 mm Body and 0.85 mm Package Height (CP-24-16)
click to zoom
3D Models
ADRF5130BCPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - 24-Lead Lead Frame Chip Scale Package [LFCSP] 4 mm × 4 mm Body and 0.85 mm Package Height (CP-24-16)
click to zoom

ADRF5130BCPZ-R7 Details

  • Manufacturer Part Number:

    ADRF5130BCPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-220VGGD-8, 24 PIN

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-16

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-07-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    TTL COMPATIBLE, HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    46.5 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • On Time-Nom:

    0.75 µs

  • Operating Frequency-Max:

    3500 MHz

  • Operating Frequency-Min:

    700 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Port Termination:

    REFLECTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    DIVERSITY SWITCH

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

ADRF5130BCPZ-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output tracks should be kept short and away from noise sources.
  • The device requires a single 5V supply voltage, and the VCC pin should be decoupled with a 10uF capacitor to ground. The VEE pin should be connected to a quiet analog ground.
  • The device can handle up to 30 dBm of input power, but it's recommended to operate at a maximum of 20 dBm to ensure optimal performance and reliability.
  • Check the power supply voltage and decoupling, ensure proper PCB layout and grounding, and verify that the input signal is within the recommended frequency range and power level. Also, check for any signs of overheating or physical damage.
  • Yes, the ADRF5130BCPZ-R7 is a radiation-hardened device that meets the requirements of NASA's EEE-INST-002 and is suitable for use in high-reliability and aerospace applications.
