ADRF5130BCPZ - Analog Devices

Description: Analog Devices ADRF5130BCPZ, RF Switch Circuit 3.5GHz 41dB Isolation TTL 24-Pin LFCSP

Download ADRF5130BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

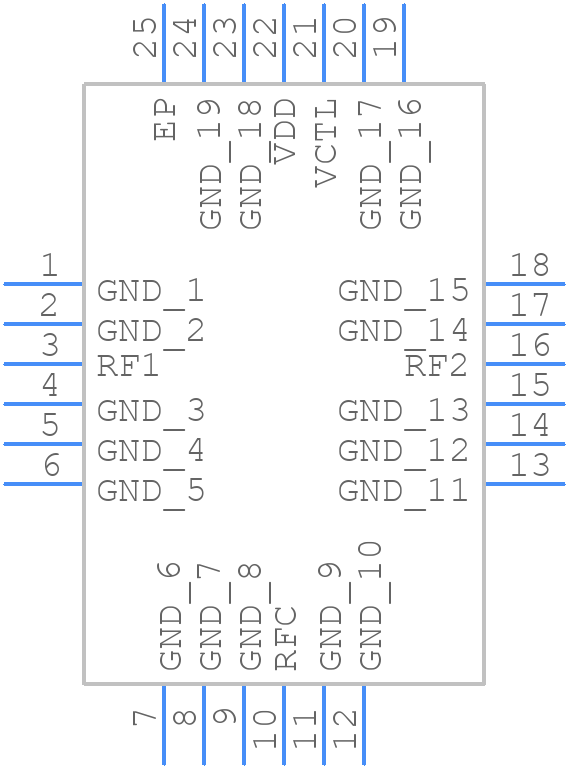

ADRF5130BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADRF5130BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-LFCSP (4x4)
click to zoom
3D Models
ADRF5130BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - 24-LFCSP (4x4)
click to zoom

ADRF5130BCPZ Details

  • Manufacturer Part Number:

    ADRF5130BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-220VGGD-8, 24 PIN

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-16

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-07-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    TTL COMPATIBLE, HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    46.5 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • On Time-Nom:

    0.75 µs

  • Operating Frequency-Max:

    3500 MHz

  • Operating Frequency-Min:

    700 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Port Termination:

    REFLECTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    DIVERSITY SWITCH

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

ADRF5130BCPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces short and away from the digital lines. Use a common mode filter or a pi-filter to reduce EMI.
  • Ensure the VCC pin is connected to a stable 5V power supply, and the VEE pin is connected to a stable -5V power supply. Use a voltage regulator or a voltage reference to generate the required voltages.
  • The recommended input impedance is 50 ohms, and the recommended output impedance is also 50 ohms. Impedance matching is critical for optimal performance.
  • Use a low-noise power supply, and ensure the PCB is well-shielded. Use a common mode filter or a pi-filter to reduce EMI. Keep the RF traces away from the digital lines and use a ground plane to reduce radiation.
  • The maximum operating frequency of the ADRF5130BCPZ is 6 GHz. However, the device can be used up to 10 GHz with some degradation in performance.
