ADRF5132BCPZN - Analog Devices

Description: RF Switch ICs High Pwr ,20W Peak SPDT,Reflective Swich

Download ADRF5132BCPZN Model

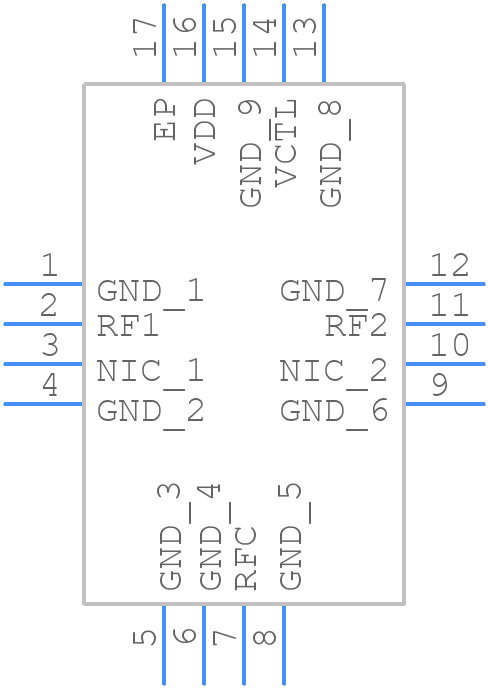

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADRF5132BCPZN - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ADRF5132BCPZN
click to zoom
3D Models
ADRF5132BCPZN - Analog Devices  - 3D model - Quad Flat No-Lead - ADRF5132BCPZN
click to zoom

ADRF5132BCPZN Details

  • Manufacturer Part Number:

    ADRF5132BCPZN

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    COMPLIANT WITH MO-220WEED-2, 16 PIN

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-35

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    43 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • On Time-Nom:

    0.55 µs

  • Operating Frequency-Max:

    5000 MHz

  • Operating Frequency-Min:

    700 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Port Termination:

    REFLECTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    DIVERSITY SWITCH

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

ADRF5132BCPZN Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces short and away from the digital lines. Use a common mode filter or a pi-filter to reduce EMI.
  • Ensure the VCC pin is connected to a stable 5V power supply, and the VEE pin is connected to a stable -5V power supply. Use a voltage regulator or a voltage reference to generate the required voltages.
  • The recommended input impedance is 50 ohms, and the recommended output impedance is also 50 ohms. Impedance matching is critical for optimal performance.
  • Use a low-noise power supply, and ensure the PCB is well-grounded. Use shielding and filtering to reduce electromagnetic interference (EMI). Keep the RF traces away from the digital lines.
  • The maximum operating frequency of the ADRF5132BCPZN is 6 GHz. However, the device can be used up to 12 GHz with reduced performance.
