ADRF5160BCPZ - Analog Devices

Description: High Power, 88 W Peak, Silicon SPDT, Reflective Switch, 0.7 GHz to 4.0 GHz

Download ADRF5160BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

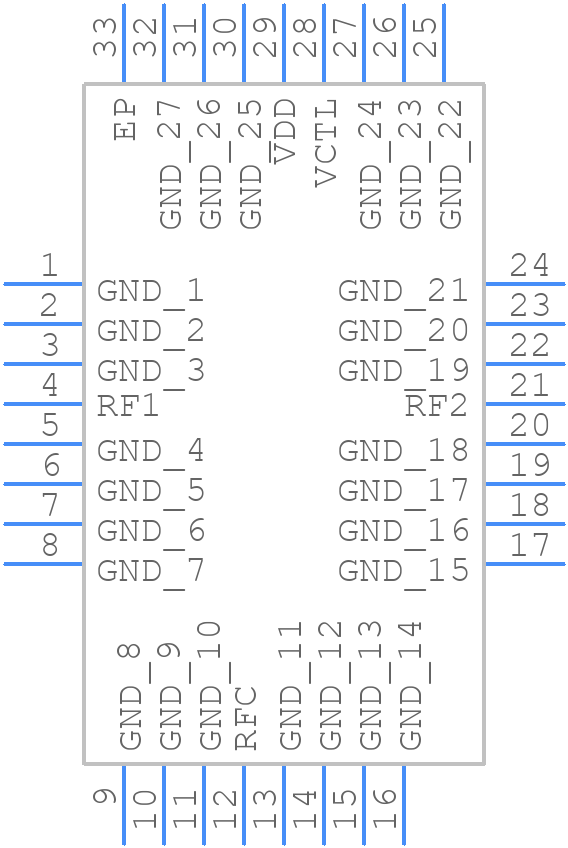

ADRF5160BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADRF5160BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HCP-32- 1
click to zoom
3D Models
ADRF5160BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - HCP-32- 1
click to zoom

ADRF5160BCPZ Details

  • Manufacturer Part Number:

    ADRF5160BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-220VHHD-4, 32 PIN

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-05-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    CMOS COMPATIBLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    49.7 dBm

  • Insertion Loss-Max:

    1 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • On Time-Nom:

    1.2 µs

  • Operating Frequency-Max:

    4000 MHz

  • Operating Frequency-Min:

    700 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Port Termination:

    REFLECTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    DIVERSITY SWITCH

  • Surface Mount:

    YES

ADRF5160BCPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output tracks as short as possible and use 50Ω transmission lines to minimize signal reflections.
  • Ensure the VCC pin is connected to a stable 5V power supply, and the VEE pin is connected to a stable -5V power supply. The bias voltage (VB) should be set to 2.5V using a voltage divider or a voltage reference.
  • The ADRF5160BCPZ can handle up to 2W of power, but it's recommended to derate the power handling to 1W or less to ensure reliable operation and minimize thermal issues.
  • Check the PCB layout for any signs of resonance or oscillation. Ensure the input and output impedances are matched, and the bias voltage is stable. Use a spectrum analyzer to identify any unwanted frequency components.
  • Yes, the ADRF5160BCPZ can be used in a push-pull configuration, but it requires careful design and layout to ensure proper operation. Consult the datasheet and application notes for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADRF5160BCPZ Overview

Use the download button to access the ADRF5160BCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADRF5, or try a keyword search, such as RF/Microwave Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
