ADRF5250BCPZ-R7 - Analog Devices

Description: RF Switch ICs 0.1-6GHz High Isolation SP5T

Download ADRF5250BCPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

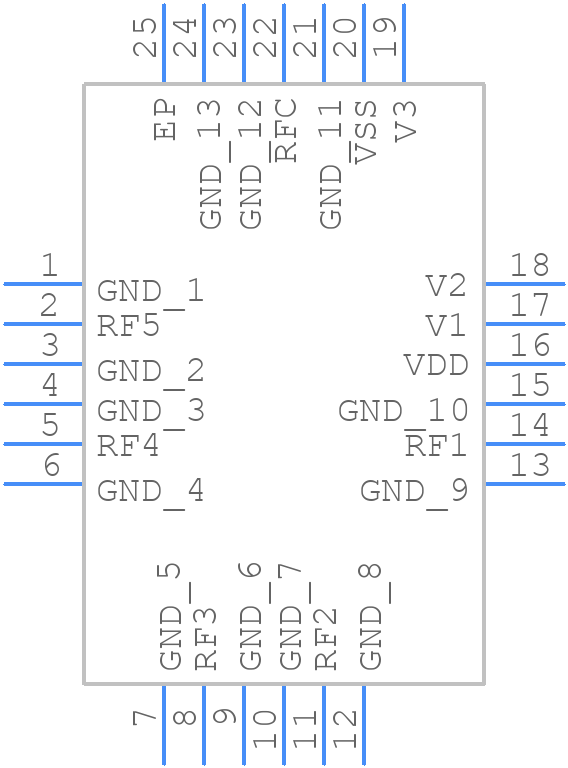

ADRF5250BCPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADRF5250BCPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-23
click to zoom
3D Models
ADRF5250BCPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-24-23
click to zoom

ADRF5250BCPZ-R7 Details

  • Manufacturer Part Number:

    ADRF5250BCPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-220WGGD-6, 24 PIN

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-23

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    35 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • On Time-Nom:

    0.15 µs

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    DIVERSITY SWITCH

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

ADRF5250BCPZ-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the RF input, and the output should be routed away from the input to minimize feedback.
  • The device requires a single 5V supply voltage. Ensure the voltage regulator is stable and has low noise. A 10uF capacitor in parallel with a 100nF capacitor is recommended for power supply decoupling.
  • The maximum input power is +10dBm. Exceeding this may cause compression or damage to the device.
  • Use the device's internal matching network and adjust the external components (L1, L2, C1, and C2) to optimize the impedance match for the desired frequency band.
  • The device operates from -40°C to +85°C. Ensure proper thermal management to maintain optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADRF5250BCPZ-R7 Overview

Use the download button to access the ADRF5250BCPZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADRF5, or try a keyword search, such as RF/Microwave Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
