ADRF5300BCCZN footprint, schematic symbol and 3D model by Analog Devices

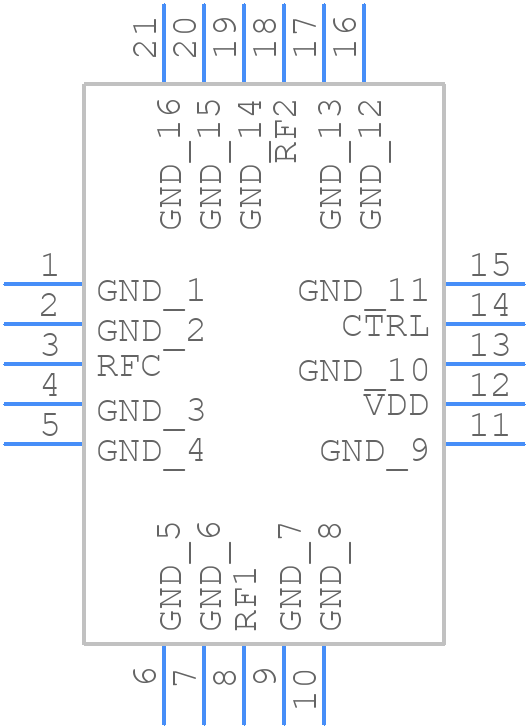

Symbol

click to zoom

PCB Footprints

ADRF5300BCCZN - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 20-VFLGA

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ADRF5300BCCZN
Part Number ADRF5300BCCZN
Manufacturer Analog Devices
Pin Count 21
Part Category Diode ESD (Uni-directional)
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - 20-VFLGA
Last Modified Date Jan 30, 2026 7:13 PM UTC
Pinout / Pin List Click Here (Member Only)

ADRF5300BCCZN Details

Manufacturer Part Number:
ADRF5300BCCZN
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
LGA-20
Pin Count:
20
Manufacturer Package Code:
CC-20-9
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Date Of Intro:
2020-09-21
Manufacturer:
Analog Devices Inc
YTEOL:
8.5
Additional Feature:
CMOS/TTL COMPATIBLE, HIGH LINEARITY AND ISOLATION, I/P POWER-MAX(PEAK)=3.98W
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
Input Power-Max (CW):
28 dBm
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Functions:
1
Number of Terminals:
20
On Time-Nom:
0.06 µs
Operating Frequency-Max:
32000 MHz
Operating Frequency-Min:
24000 MHz
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Package Equivalence Code:
LGA20,5X5,16
Port Termination:
REFLECTIVE
Power Supplies:
3.3 V
RF/Microwave Device Type:
SPDT
Screening Level:
5G
Supply Current-Max:
0.45 mA
Surface Mount:
YES
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
VSWR-Max:
1.17

ADRF5300BCCZN Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces short and away from the digital lines. Use a common mode filter or a pi-filter to reduce EMI.
Ensure the VCC pin is connected to a stable 5V power supply, and the VEE pin is connected to a stable -5V power supply. Use a voltage regulator to regulate the voltage and decouple the power supply lines with capacitors.
The recommended input impedance is 50 ohms, and the recommended output impedance is also 50 ohms. Ensure the input and output matching networks are designed to match these impedances for optimal performance.
Use a low-noise amplifier or a low-noise voltage regulator to power the ADRF5300BCCZN. Ensure the PCB layout is optimized for low noise, and use shielding to reduce electromagnetic interference.
The maximum operating temperature range for the ADRF5300BCCZN is -40°C to +85°C. Ensure the device is operated within this range to ensure optimal performance and reliability.

Trust Checks

System Verified

ADRF5300BCCZN Overview

Use the download button to access the ADRF5300BCCZN schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ADRF5, or try a keyword search, such as RF/Microwave Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
