ADRF5515ABCPZN - Analog Devices

Description: Dual-Channel, 3.3 GHz to 4.0 GHz, 20 W Receiver Front End

Download ADRF5515ABCPZN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

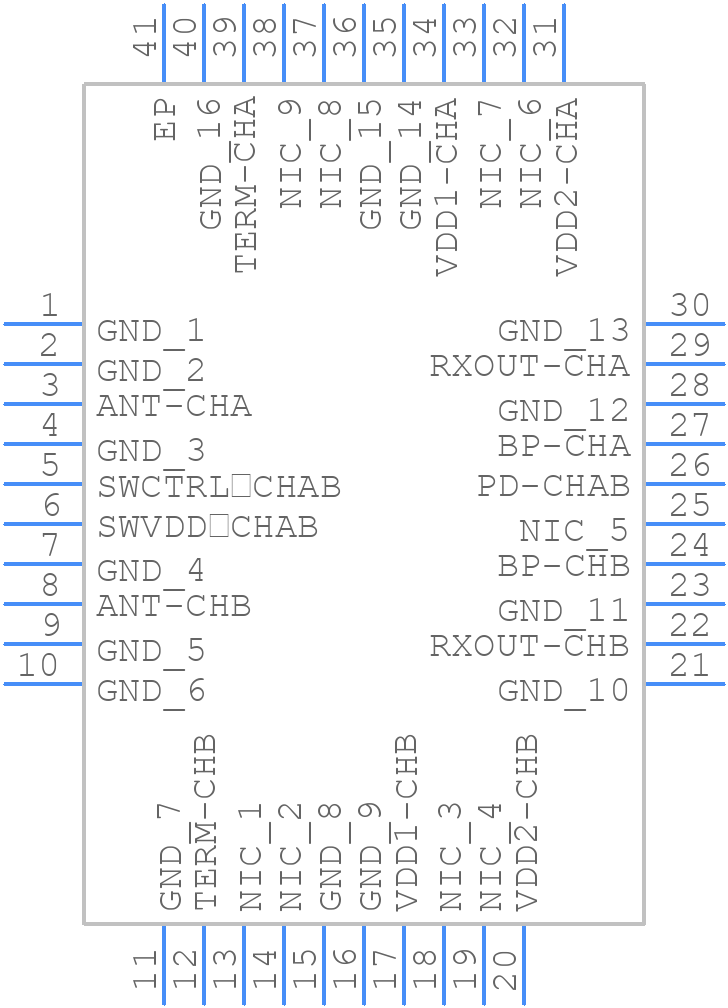

ADRF5515ABCPZN - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADRF5515ABCPZN - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-15
click to zoom
3D Models
ADRF5515ABCPZN - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-15
click to zoom

ADRF5515ABCPZN Details

  • Manufacturer Part Number:

    ADRF5515ABCPZN

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-15

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Telecom IC Type:

    RF FRONT END CIRCUIT

  • Time@Peak Reflow Temperature-Max (s):

    30

ADRF5515ABCPZN Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the ADRF5515 evaluation board documentation, which includes guidelines for component placement, routing, and grounding. Following this layout can ensure optimal performance and minimize parasitic effects.
  • The ADRF5515 has a programmable gain amplifier, and analog-to-digital converter (ADC). To optimize dynamic range, adjust the gain settings and ADC range to match the input signal amplitude. The datasheet provides guidance on gain settings and ADC range selection.
  • A combination of ceramic and electrolytic capacitors should be used to decouple the power supply. A 100nF ceramic capacitor should be placed close to the device, and a 10uF electrolytic capacitor should be placed near the power supply source. This scheme helps to filter out noise and ripple in the power supply.
  • To ensure EMI compliance, use shielded cables and connectors, and follow proper PCB layout and grounding techniques. Additionally, consider using EMI filters or shielding on the device and surrounding components. Analog Devices provides EMI compliance guidelines in their application notes and documentation.
  • The ADRF5515 has an internal calibration mechanism. However, external calibration may be required depending on the specific application requirements. Analog Devices provides calibration procedures and guidelines in their application notes and documentation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADRF5515ABCPZN Overview

Use the download button to access the ADRF5515ABCPZN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADRF5, or try a keyword search, such as Cellular Telephone Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
