ADRF5545ABCPZN - Analog Devices

Description: RF Front End Dual Channel, 2.4 GHz to 4.2 GHz Receive Integrated dual-channel RF front end 2-stage LNA and high power SPDT switch On-chip bias and matching Single supply operation

Download ADRF5545ABCPZN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

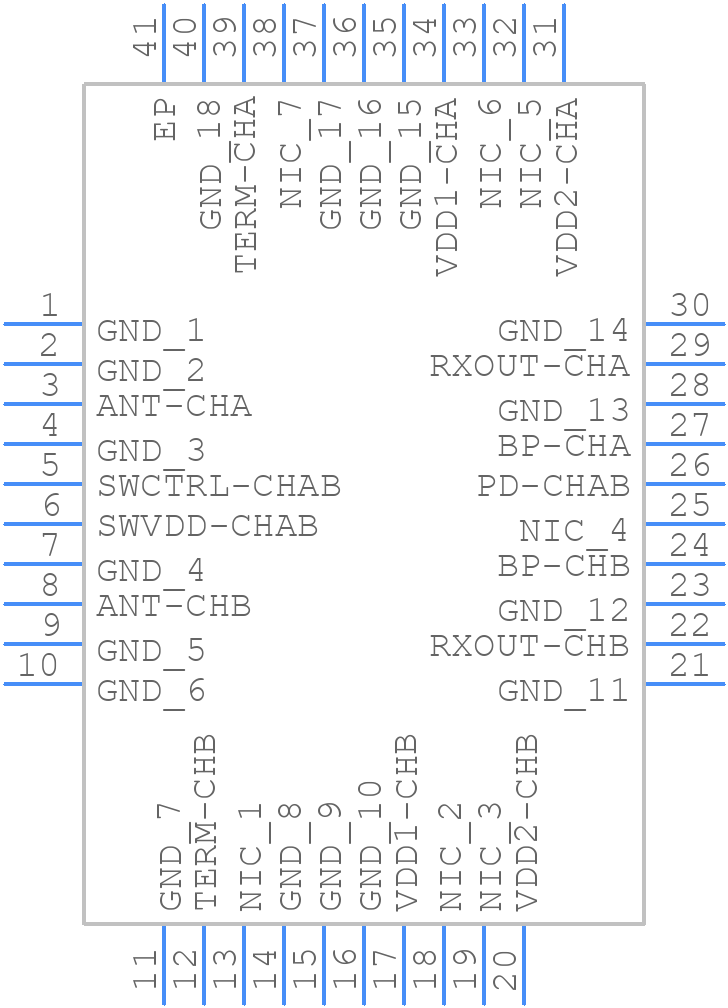

ADRF5545ABCPZN - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADRF5545ABCPZN - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-15
click to zoom
3D Models
ADRF5545ABCPZN - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-15
click to zoom

ADRF5545ABCPZN Details

  • Manufacturer Part Number:

    ADRF5545ABCPZN

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-05-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

ADRF5545ABCPZN Frequently Asked Questions (FAQs)

  • The recommended PCB layout and thermal management for the ADRF5545ABCPZN can be found in the 'PCB Layout and Thermal Management' section of the ADI's application note AN-1369. It provides guidelines for optimal performance, including component placement, thermal vias, and heat sink design.
  • The biasing and matching networks for the ADRF5545ABCPZN can be optimized using ADI's simulation tools, such as the ADIsimRF design environment. This tool allows you to simulate and optimize the performance of the device in your specific application.
  • The recommended calibration procedure for the ADRF5545ABCPZN can be found in the 'Calibration' section of the datasheet. It involves adjusting the device's internal registers to optimize its performance and ensure accurate results.
  • The ADRF5545ABCPZN can be interfaced with a microcontroller or FPGA using a serial interface, such as SPI or I2C. The specific interface and protocol will depend on the application and the requirements of the system. ADI provides example code and interface diagrams in the datasheet and application notes.
  • The typical power consumption of the ADRF5545ABCPZN is around 350mA, and it requires a single 5V power supply. The device also has an enable pin that can be used to power down the device when not in use, reducing power consumption to less than 1mA.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADRF5545ABCPZN Overview

Use the download button to access the ADRF5545ABCPZN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADRF5, or try a keyword search, such as Cellular Telephone Circuits
